B
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF64566 | 150 | 278 | 975 | 510 | 222 | 232 | B8 | A1 | 3 |
| SMF64558 | 150 | 278 | 975 | 510 | 222 | 232 | B8 | A1 | 4 |
| SMF66514 | 170 | 324 | 1090 | 510 | 222 | 232 | B8 | A1 | 3 |
| SMF66515 | 170 | 324 | 1090 | 510 | 222 | 232 | B8 | A1 | 4 |
| SMF67570 | 180 | 348 | 1170 | 510 | 222 | 232 | B8 | A1 | 3 |
| SMF67562 | 180 | 348 | 1170 | 510 | 222 | 232 | B8 | A1 | 4 |
| SMF69018 | 200 | 383 | 1265 | 510 | 222 | 232 | B8 | A1 | 3 |
| SMF69065 | 200 | 383 | 1265 | 510 | 222 | 232 | B8 | A1 | 4 |
C
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF69077 | 200 | 383 | 1000 | 512 | 278 | 239 | B8 | A1 | 3 |
| SMF69074 | 200 | 383 | 1000 | 512 | 278 | 239 | B8 | A1 | 4 |
| SMF71884 | 226 | 451 | 1100 | 512 | 278 | 239 | B8 | A1 | 3 |
| SMF71883 | 226 | 451 | 1100 | 512 | 278 | 239 | B8 | A1 | 4 |
| SMF72025 | 233 | 456 | 1100 | 512 | 278 | 239 | B8 | A1 | 3 |
| SMF72076 | 233 | 456 | 1100 | 512 | 278 | 239 | B8 | A1 | 4 |
L1
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF54459 | 44 | 61 | 380 | 207 | 175 | 190 | B3 | A1 | 0 |
| SMF54507 | 49 | 70 | 415 | 207 | 175 | 190 | B3 | A1 | 0 |
| SMF55090 | 54 | 79 | 470 | 207 | 175 | 190 | B3 | A1 | 0 |
L2
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF55018 | 54 | 79 | 470 | 242 | 175 | 190 | B3 | A1 | 0 |
| SMF55559 | 59 | 88 | 505 | 242 | 175 | 190 | B3 | A1 | 0 |
| SMF56019 | 64 | 98 | 560 | 242 | 175 | 190 | B3 | A1 | 0 |
L3
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF56638 | 69 | 110 | 595 | 278 | 175 | 190 | B3 | A1 | 0 |
| SMF57220 | 74 | 122 | 660 | 278 | 175 | 190 | B3 | A1 | 0 |
| SMF57412 | 78 | 126 | 685 | 278 | 175 | 190 | B3 | A1 | 0 |
L5
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF58439 | 88 | 146 | 775 | 377 | 175 | 190 | B3 | A1 | 0 |
| SMF59018 | 93 | 154 | 830 | 377 | 175 | 190 | B3 | A1 | 0 |
| SMF59485 | 98 | 158 | 860 | 377 | 175 | 190 | B3 | A1 | 0 |
| SMF60044 | 103 | 179 | 920 | 377 | 175 | 190 | B3 | A1 | 0 |
N50Z
| Part Number | Capacity 20 (AH) up to |
Reserve Capacity (min) |
CCA(EN)(A) | Max.Overall Dimension (mm) |
Base Hold Down |
Terminal Type |
Terminal Layout |
||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 65D26R | 63 | 98 | 520 | 284 | 173 | 216 | B8 | A1 | 1 |
| 75D26L | 70 | 110 | 560 | 284 | 173 | 216 | B8 | A1 | 0 |
| 75D26R | 70 | 110 | 560 | 284 | 173 | 216 | B8 | A1 | 1 |
E41
| Part Number | Capacity 20 (AH) up to |
Reserve Capacity (min) |
CCA(EN)(A) | Max.Overall Dimension (mm) |
Base Hold Down |
Terminal Type |
Terminal Layout |
||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 120E41L(NX200-10L) | 120 | 212 | 960 | 410 | 176 | 234 | B8 | A1 | 0 |
| 125E41L | 125 | 223 | 1020 | 410 | 176 | 234 | B8 | A1 | 0 |
D31
| Part Number | Capacity 20 (AH) up to |
Reserve Capacity (min) |
CCA(EN)(A) | Max.Overall Dimension (mm) |
Base Hold Down |
Terminal Type |
Terminal Layout |
||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 120D31L | 108 | 179 | 860 | 306 | 175 | 225 | B4 | A1 | 0 |
| 120D31R | 108 | 179 | 860 | 306 | 175 | 225 | B4 | A1 | 1 |
G51
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 150G51R | 150 | 278 | 975 | 513 | 222 | 217 | B8 | A1 | 3 |
| 170G51R | 170 | 324 | 1090 | 513 | 222 | 217 | B8 | A1 | 3 |
| 195G51R | 180 | 348 | 1170 | 513 | 222 | 217 | B8 | A1 | 3 |
| 205G51R | 200 | 383 | 1265 | 513 | 222 | 217 | B8 | A1 | 3 |
H51
| Part Number | Capacity 20 (AH) up to |
Reserve Capacity (min) |
CCA(EN)(A) | Max.Overall Dimension (mm) |
Base Hold Down |
Terminal Type |
Terminal Layout |
||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 200H51R | 200 | 383 | 1000 | 512 | 278 | 239 | B8 | A1 | 3 |
| 226H51R | 226 | 451 | 1100 | 512 | 278 | 239 | B8 | A1 | 3 |
| 245H51R | 233 | 456 | 1100 | 512 | 278 | 239 | B8 | A1 | 3 |
B20
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF38B20L(NS40ZL) | 35 | 52 | 305 | 197 | 129 | 227 | N | A2 | 0 |
| SMF38B20R(NS40Z) | 35 | 52 | 305 | 197 | 129 | 227 | N | A2 | 1 |
B24(NS60)
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF50B24L(NS60LS) | 45 | 70 | 380 | 238 | 129 | 227 | N | A1 | 0 |
| SMF50B24R(NS60S) | 45 | 70 | 380 | 238 | 129 | 227 | N | A1 | 1 |
D23
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF65D23L | 63 | 98 | 520 | 238 | 178 | 225 | B4 | A1 | 0 |
| SMF65D23R | 63 | 98 | 520 | 238 | 178 | 225 | B4 | A1 | 1 |
| SMF75D23L | 70 | 110 | 560 | 238 | 178 | 225 | B4 | A1 | 0 |
| SMF75D23R | 70 | 110 | 560 | 238 | 178 | 225 | B4 | A1 | 1 |
D26(N50)
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF50D26L(N50L) | 50 | 73 | 420 | 257 | 176 | 225 | B4 | A1 | 0 |
| SMF50D26R(N50) | 50 | 73 | 420 | 257 | 176 | 225 | B4 | A1 | 1 |
| SMF80D26L(NX110-5L) | 75 | 118 | 620 | 257 | 176 | 225 | B4 | A1 | 0 |
| SMF80D26R(NX110-5) | 75 | 118 | 620 | 257 | 176 | 225 | B4 | A1 | 1 |
| SMF90D26L | 83 | 128 | 660 | 257 | 176 | 225 | B4 | A1 | 0 |
| SMF90D26R | 83 | 128 | 660 | 257 | 176 | 225 | B4 | A1 | 1 |
D31
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF75D31L(N70L) | 75 | 118 | 620 | 306 | 175 | 225 | B4 | A1 | 0 |
| SMF75D31R(N70) | 75 | 118 | 620 | 306 | 175 | 225 | B4 | A1 | 1 |
| SMF95D31L | 83 | 138 | 660 | 306 | 175 | 225 | B4 | A1 | 0 |
| SMF95D31R | 83 | 138 | 660 | 306 | 175 | 225 | B4 | A1 | 1 |
| SMF105D31L | 95 | 158 | 760 | 306 | 175 | 225 | B4 | A1 | 0 |
| SMF105D31R | 95 | 158 | 760 | 306 | 175 | 225 | B4 | A1 | 1 |
| SMF120D31L | 108 | 179 | 860 | 306 | 175 | 225 | B4 | A1 | 0 |
| SMF120D31R | 108 | 179 | 860 | 306 | 175 | 225 | B4 | A1 | 1 |
G51
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF150G51R(N150L) | 150 | 278 | 975 | 510 | 222 | 232 | B8 | A1 | 3 |
| SMF150G51L(N150) | 150 | 278 | 975 | 510 | 222 | 232 | B8 | A1 | 4 |
| SMF170G51R(N170L) | 170 | 324 | 1090 | 510 | 222 | 232 | B8 | A1 | 3 |
| SMF170G51L(N170) | 170 | 324 | 1090 | 510 | 222 | 232 | B8 | A1 | 4 |
| SMF195G51R(N180L) | 180 | 348 | 1170 | 510 | 222 | 232 | B8 | A1 | 3 |
| SMF195G51L(N180) | 180 | 348 | 1170 | 510 | 222 | 232 | B8 | A1 | 4 |
| SMF205G51R | 200 | 383 | 1265 | 510 | 222 | 232 | B8 | A1 | 3 |
| SMF205G51L | 200 | 383 | 1265 | 510 | 222 | 232 | B8 | A1 | 4 |
H51
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF200H51R(N200L) | 200 | 383 | 1000 | 512 | 278 | 239 | B8 | A1 | 3 |
| SMF200H51L(N200) | 200 | 383 | 1000 | 512 | 278 | 239 | B8 | A1 | 4 |
| SMF226H51R | 226 | 451 | 1100 | 512 | 278 | 239 | B8 | A1 | 3 |
| SMF226H51L | 226 | 451 | 1100 | 512 | 278 | 239 | B8 | A1 | 4 |
| SMF245H51R(N245L) | 233 | 456 | 1100 | 512 | 278 | 239 | B8 | A1 | 3 |
| SMF245H51L(N245) | 233 | 456 | 1100 | 512 | 278 | 239 | B8 | A1 | 4 |
B
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF64566 | 150 | 278 | 975 | 510 | 222 | 232 | B8 | A1 | 3 |
| SMF64558 | 150 | 278 | 975 | 510 | 222 | 232 | B8 | A1 | 4 |
| SMF66514 | 170 | 324 | 1090 | 510 | 222 | 232 | B8 | A1 | 3 |
| SMF66515 | 170 | 324 | 1090 | 510 | 222 | 232 | B8 | A1 | 4 |
| SMF67570 | 180 | 348 | 1170 | 510 | 222 | 232 | B8 | A1 | 3 |
| SMF67562 | 180 | 348 | 1170 | 510 | 222 | 232 | B8 | A1 | 4 |
| SMF69018 | 200 | 383 | 1265 | 510 | 222 | 232 | B8 | A1 | 3 |
| SMF69065 | 200 | 383 | 1265 | 510 | 222 | 232 | B8 | A1 | 4 |
C
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF69077 | 200 | 383 | 1000 | 512 | 278 | 239 | B8 | A1 | 3 |
| SMF69074 | 200 | 383 | 1000 | 512 | 278 | 239 | B8 | A1 | 4 |
| SMF71884 | 226 | 451 | 1100 | 512 | 278 | 239 | B8 | A1 | 3 |
| SMF71883 | 226 | 451 | 1100 | 512 | 278 | 239 | B8 | A1 | 4 |
| SMF72025 | 233 | 456 | 1100 | 512 | 278 | 239 | B8 | A1 | 3 |
| SMF72076 | 233 | 456 | 1100 | 512 | 278 | 239 | B8 | A1 | 4 |
L1
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF54459 | 44 | 61 | 380 | 207 | 175 | 190 | B3 | A1 | 0 |
| SMF54507 | 49 | 70 | 415 | 207 | 175 | 190 | B3 | A1 | 0 |
| SMF55090 | 54 | 79 | 470 | 207 | 175 | 190 | B3 | A1 | 0 |
L2
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF55018 | 54 | 79 | 470 | 242 | 175 | 190 | B3 | A1 | 0 |
| SMF55559 | 59 | 88 | 505 | 242 | 175 | 190 | B3 | A1 | 0 |
| SMF56019 | 64 | 98 | 560 | 242 | 175 | 190 | B3 | A1 | 0 |
L3
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF56638 | 69 | 110 | 595 | 278 | 175 | 190 | B3 | A1 | 0 |
| SMF57220 | 74 | 122 | 660 | 278 | 175 | 190 | B3 | A1 | 0 |
| SMF57412 | 78 | 126 | 685 | 278 | 175 | 190 | B3 | A1 | 0 |
L5
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF58439 | 88 | 146 | 775 | 377 | 175 | 190 | B3 | A1 | 0 |
| SMF59018 | 93 | 154 | 830 | 377 | 175 | 190 | B3 | A1 | 0 |
| SMF59485 | 98 | 158 | 860 | 377 | 175 | 190 | B3 | A1 | 0 |
| SMF60044 | 103 | 179 | 920 | 377 | 175 | 190 | B3 | A1 | 0 |
N50Z
| Part Number | Capacity 20 (AH) up to |
Reserve Capacity (min) |
CCA(EN)(A) | Max.Overall Dimension (mm) |
Base Hold Down |
Terminal Type |
Terminal Layout |
||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 65D26R | 63 | 98 | 520 | 284 | 173 | 216 | B8 | A1 | 1 |
| 75D26L | 70 | 110 | 560 | 284 | 173 | 216 | B8 | A1 | 0 |
| 75D26R | 70 | 110 | 560 | 284 | 173 | 216 | B8 | A1 | 1 |
E41
| Part Number | Capacity 20 (AH) up to |
Reserve Capacity (min) |
CCA(EN)(A) | Max.Overall Dimension (mm) |
Base Hold Down |
Terminal Type |
Terminal Layout |
||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 120E41L(NX200-10L) | 120 | 212 | 960 | 410 | 176 | 234 | B8 | A1 | 0 |
| 125E41L | 125 | 223 | 1020 | 410 | 176 | 234 | B8 | A1 | 0 |
D31
| Part Number | Capacity 20 (AH) up to |
Reserve Capacity (min) |
CCA(EN)(A) | Max.Overall Dimension (mm) |
Base Hold Down |
Terminal Type |
Terminal Layout |
||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 120D31L | 108 | 179 | 860 | 306 | 175 | 225 | B4 | A1 | 0 |
| 120D31R | 108 | 179 | 860 | 306 | 175 | 225 | B4 | A1 | 1 |
G51
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 150G51R | 150 | 278 | 975 | 513 | 222 | 217 | B8 | A1 | 3 |
| 170G51R | 170 | 324 | 1090 | 513 | 222 | 217 | B8 | A1 | 3 |
| 195G51R | 180 | 348 | 1170 | 513 | 222 | 217 | B8 | A1 | 3 |
| 205G51R | 200 | 383 | 1265 | 513 | 222 | 217 | B8 | A1 | 3 |
H51
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 200H51R | 200 | 383 | 1000 | 512 | 278 | 239 | B8 | A1 | 3 |
| 226H51R | 226 | 451 | 1100 | 512 | 278 | 239 | B8 | A1 | 3 |
| 245H51R | 233 | 456 | 1100 | 512 | 278 | 239 | B8 | A1 | 3 |
B20
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF38B20L(NS40ZL) | 35 | 52 | 305 | 197 | 129 | 227 | N | A2 | 0 |
| SMF38B20R(NS40Z) | 35 | 52 | 305 | 197 | 129 | 227 | N | A2 | 1 |
B24(NS60)
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF50B24L(NS60LS) | 45 | 70 | 380 | 238 | 129 | 227 | N | A1 | 0 |
| SMF50B24R(NS60S) | 45 | 70 | 380 | 238 | 129 | 227 | N | A1 | 1 |
D23
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF65D23L | 63 | 98 | 520 | 238 | 178 | 225 | B4 | A1 | 0 |
| SMF65D23R | 63 | 98 | 520 | 238 | 178 | 225 | B4 | A1 | 1 |
| SMF75D23L | 70 | 110 | 560 | 238 | 178 | 225 | B4 | A1 | 0 |
| SMF75D23R | 70 | 110 | 560 | 238 | 178 | 225 | B4 | A1 | 1 |
D26(N50)
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF50D26L(N50L) | 50 | 73 | 420 | 257 | 176 | 225 | B4 | A1 | 0 |
| SMF50D26R(N50) | 50 | 73 | 420 | 257 | 176 | 225 | B4 | A1 | 1 |
| SMF80D26L(NX110-5L) | 75 | 118 | 620 | 257 | 176 | 225 | B4 | A1 | 0 |
| SMF80D26R(NX110-5) | 75 | 118 | 620 | 257 | 176 | 225 | B4 | A1 | 1 |
| SMF90D26L | 83 | 128 | 660 | 257 | 176 | 225 | B4 | A1 | 0 |
| SMF90D26R | 83 | 128 | 660 | 257 | 176 | 225 | B4 | A1 | 1 |
D31
| Part Number | Capacity 20 (AH) up to |
Reserve Capacity (min) |
CCA(EN)(A) | Max.Overall Dimension (mm) |
Base Hold Down |
Terminal Type |
Terminal Layout |
||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF75D31L(N70L) | 75 | 118 | 620 | 306 | 175 | 225 | B4 | A1 | 0 |
| SMF75D31R(N70) | 75 | 118 | 620 | 306 | 175 | 225 | B4 | A1 | 1 |
| SMF95D31L | 83 | 138 | 660 | 306 | 175 | 225 | B4 | A1 | 0 |
| SMF95D31R | 83 | 138 | 660 | 306 | 175 | 225 | B4 | A1 | 1 |
| SMF105D31L | 95 | 158 | 760 | 306 | 175 | 225 | B4 | A1 | 0 |
| SMF105D31R | 95 | 158 | 760 | 306 | 175 | 225 | B4 | A1 | 1 |
| SMF120D31L | 108 | 179 | 860 | 306 | 175 | 225 | B4 | A1 | 0 |
| SMF120D31R | 108 | 179 | 860 | 306 | 175 | 225 | B4 | A1 | 1 |
G51
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF150G51R(N150L) | 150 | 278 | 975 | 510 | 222 | 232 | B8 | A1 | 3 |
| SMF150G51L(N150) | 150 | 278 | 975 | 510 | 222 | 232 | B8 | A1 | 4 |
| SMF170G51R(N170L) | 170 | 324 | 1090 | 510 | 222 | 232 | B8 | A1 | 3 |
| SMF170G51L(N170) | 170 | 324 | 1090 | 510 | 222 | 232 | B8 | A1 | 4 |
| SMF195G51R(N180L) | 180 | 348 | 1170 | 510 | 222 | 232 | B8 | A1 | 3 |
| SMF195G51L(N180) | 180 | 348 | 1170 | 510 | 222 | 232 | B8 | A1 | 4 |
| SMF205G51R | 200 | 383 | 1265 | 510 | 222 | 232 | B8 | A1 | 3 |
| SMF205G51L | 200 | 383 | 1265 | 510 | 222 | 232 | B8 | A1 | 4 |
H51
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF200H51R(N200L) | 200 | 383 | 1000 | 512 | 278 | 239 | B8 | A1 | 3 |
| SMF200H51L(N200) | 200 | 383 | 1000 | 512 | 278 | 239 | B8 | A1 | 4 |
| SMF226H51R | 226 | 451 | 1100 | 512 | 278 | 239 | B8 | A1 | 3 |
| SMF226H51L | 226 | 451 | 1100 | 512 | 278 | 239 | B8 | A1 | 4 |
| SMF245H51R(N245L) | 233 | 456 | 1100 | 512 | 278 | 239 | B8 | A1 | 3 |
| SMF245H51L(N245) | 233 | 456 | 1100 | 512 | 278 | 239 | B8 | A1 | 4 |
B
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF64566 | 150 | 278 | 975 | 510 | 222 | 232 | B8 | A1 | 3 |
| SMF64558 | 150 | 278 | 975 | 510 | 222 | 232 | B8 | A1 | 4 |
| SMF66514 | 170 | 324 | 1090 | 510 | 222 | 232 | B8 | A1 | 3 |
| SMF66515 | 170 | 324 | 1090 | 510 | 222 | 232 | B8 | A1 | 4 |
| SMF67570 | 180 | 348 | 1170 | 510 | 222 | 232 | B8 | A1 | 3 |
| SMF67562 | 180 | 348 | 1170 | 510 | 222 | 232 | B8 | A1 | 4 |
| SMF69018 | 200 | 383 | 1265 | 510 | 222 | 232 | B8 | A1 | 3 |
| SMF69065 | 200 | 383 | 1265 | 510 | 222 | 232 | B8 | A1 | 4 |
C
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF69077 | 200 | 383 | 1000 | 512 | 278 | 239 | B8 | A1 | 3 |
| SMF69074 | 200 | 383 | 1000 | 512 | 278 | 239 | B8 | A1 | 4 |
| SMF71884 | 226 | 451 | 1100 | 512 | 278 | 239 | B8 | A1 | 3 |
| SMF71883 | 226 | 451 | 1100 | 512 | 278 | 239 | B8 | A1 | 4 |
| SMF72025 | 233 | 456 | 1100 | 512 | 278 | 239 | B8 | A1 | 3 |
| SMF72076 | 233 | 456 | 1100 | 512 | 278 | 239 | B8 | A1 | 4 |
L1
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF54459 | 44 | 61 | 380 | 207 | 175 | 190 | B3 | A1 | 0 |
| SMF54507 | 49 | 70 | 415 | 207 | 175 | 190 | B3 | A1 | 0 |
| SMF55090 | 54 | 79 | 470 | 207 | 175 | 190 | B3 | A1 | 0 |
L2
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF55018 | 54 | 79 | 470 | 242 | 175 | 190 | B3 | A1 | 0 |
| SMF55559 | 59 | 88 | 505 | 242 | 175 | 190 | B3 | A1 | 0 |
| SMF56019 | 64 | 98 | 560 | 242 | 175 | 190 | B3 | A1 | 0 |
L3
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF56638 | 69 | 110 | 595 | 278 | 175 | 190 | B3 | A1 | 0 |
| SMF57220 | 74 | 122 | 660 | 278 | 175 | 190 | B3 | A1 | 0 |
| SMF57412 | 78 | 126 | 685 | 278 | 175 | 190 | B3 | A1 | 0 |
L5
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF58439 | 88 | 146 | 775 | 377 | 175 | 190 | B3 | A1 | 0 |
| SMF59018 | 93 | 154 | 830 | 377 | 175 | 190 | B3 | A1 | 0 |
| SMF59485 | 98 | 158 | 860 | 377 | 175 | 190 | B3 | A1 | 0 |
| SMF60044 | 103 | 179 | 920 | 377 | 175 | 190 | B3 | A1 | 0 |
N50Z
| Part Number | Capacity 20 (AH) up to |
Reserve Capacity (min) |
CCA(EN)(A) | Max.Overall Dimension (mm) |
Base Hold Down |
Terminal Type |
Terminal Layout |
||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 65D26R | 63 | 98 | 520 | 284 | 173 | 216 | B8 | A1 | 1 |
| 75D26L | 70 | 110 | 560 | 284 | 173 | 216 | B8 | A1 | 0 |
| 75D26R | 70 | 110 | 560 | 284 | 173 | 216 | B8 | A1 | 1 |
E41
| Part Number | Capacity 20 (AH) up to |
Reserve Capacity (min) |
CCA(EN)(A) | Max.Overall Dimension (mm) |
Base Hold Down |
Terminal Type |
Terminal Layout |
||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 120E41L(NX200-10L) | 120 | 212 | 960 | 410 | 176 | 234 | B8 | A1 | 0 |
| 125E41L | 125 | 223 | 1020 | 410 | 176 | 234 | B8 | A1 | 0 |
D31
| Part Number | Capacity 20 (AH) up to |
Reserve Capacity (min) |
CCA(EN)(A) | Max.Overall Dimension (mm) |
Base Hold Down |
Terminal Type |
Terminal Layout |
||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 120D31L | 108 | 179 | 860 | 306 | 175 | 225 | B4 | A1 | 0 |
| 120D31R | 108 | 179 | 860 | 306 | 175 | 225 | B4 | A1 | 1 |
G51
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 150G51R | 150 | 278 | 975 | 513 | 222 | 217 | B8 | A1 | 3 |
| 170G51R | 170 | 324 | 1090 | 513 | 222 | 217 | B8 | A1 | 3 |
| 195G51R | 180 | 348 | 1170 | 513 | 222 | 217 | B8 | A1 | 3 |
| 205G51R | 200 | 383 | 1265 | 513 | 222 | 217 | B8 | A1 | 3 |
H51
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 200H51R | 200 | 383 | 1000 | 512 | 278 | 239 | B8 | A1 | 3 |
| 226H51R | 226 | 451 | 1100 | 512 | 278 | 239 | B8 | A1 | 3 |
| 245H51R | 233 | 456 | 1100 | 512 | 278 | 239 | B8 | A1 | 3 |
B
| Part Number | Capacity 20 (AH) up to |
Reserve Capacity (min) |
CCA(EN) (A) |
Max.Overall Dimension (mm) | Base Hold Down |
Terminal Type |
Terminal Layout |
||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF6502081 | 150 | 290 | 1010 | 510 | 222 | 232 | B8 | A1 | 3 |
| SMF65059 | 150 | 290 | 1010 | 510 | 222 | 232 | B8 | A1 | 4 |
| SMF67018 | 170 | 336 | 1135 | 510 | 222 | 232 | B8 | A1 | 3 |
| SMF67019 | 170 | 336 | 1135 | 510 | 222 | 232 | B8 | A1 | 4 |
| SMF68032 | 180 | 360 | 1215 | 510 | 222 | 232 | B8 | A1 | 3 |
| SMF68033 | 180 | 360 | 1215 | 510 | 222 | 232 | B8 | A1 | 4 |
| SMF69018 | 190 | 383 | 1265 | 510 | 222 | 232 | B8 | A1 | 3 |
| SMF69065 | 190 | 383 | 1265 | 510 | 222 | 232 | B8 | A1 | 4 |
C
| Part Number | Capacity 20 (AH) up to |
Reserve Capacity (min) |
CCA(EN) (A) |
Max.Overall Dimension (mm) | Base Hold Down |
Terminal Type |
Terminal Layout |
||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF69077 | 190 | 383 | 1000 | 512 | 278 | 239 | B8 | A1 | 3 |
| SMF69074 | 190 | 383 | 1000 | 512 | 278 | 239 | B8 | A1 | 4 |
| SMF70027 | 200 | 407 | 1050 | 512 | 278 | 239 | B8 | A1 | 3 |
| SMF70029 | 200 | 407 | 1050 | 512 | 278 | 239 | B8 | A1 | 4 |
| SMF71884 | 218 | 451 | 1100 | 512 | 278 | 239 | B8 | A1 | 3 |
| SMF71883 | 218 | 451 | 1100 | 512 | 278 | 239 | B8 | A1 | 4 |
| SMF72025 | 220 | 456 | 1100 | 512 | 278 | 239 | B8 | A1 | 3 |
| SMF72076 | 220 | 456 | 1100 | 512 | 278 | 239 | B8 | A1 | 4 |
L1
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF54459 | 40 | 61 | 380 | 207 | 175 | 190 | B3 | A1 | 0 |
| SMF54507 | 45 | 70 | 415 | 207 | 175 | 190 | B3 | A1 | 0 |
| SMF55090 | 50 | 79 | 470 | 207 | 175 | 190 | B3 | A1 | 0 |
L2
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF55018 | 50 | 79 | 470 | 242 | 175 | 190 | B3 | A1 | 0 |
| SMF55559 | 55 | 88 | 505 | 242 | 175 | 190 | B3 | A1 | 0 |
| SMF56019 | 60 | 98 | 560 | 242 | 175 | 190 | B3 | A1 | 0 |
L3
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF56638 | 66 | 110 | 595 | 278 | 175 | 190 | B3 | A1 | 0 |
| SMF57220 | 72 | 122 | 660 | 278 | 175 | 190 | B3 | A1 | 0 |
| SMF57412 | 74 | 126 | 685 | 278 | 175 | 190 | B3 | A1 | 0 |
L5
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF58439 | 84 | 146 | 775 | 377 | 175 | 190 | B3 | A1 | 0 |
| SMF59018 | 90 | 154 | 830 | 377 | 175 | 190 | B3 | A1 | 0 |
| SMF59485 | 94 | 158 | 860 | 377 | 175 | 190 | B3 | A1 | 0 |
| SMF60044 | 100 | 179 | 920 | 377 | 175 | 190 | B3 | A1 | 0 |
Seale
B20
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN) (A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF38B20L(NS40ZL) | 35 | 52 | 305 | 197 | 129 | 227 | N | A2 | 0 |
| SMF38B20R(NS40Z) | 35 | 52 | 305 | 197 | 129 | 227 | N | A2 | 1 |
B24(NS60)
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN) (A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF50B24L(NS60LS) | 45 | 70 | 380 | 238 | 129 | 227 | N | A1 | 0 |
| SMF50B24R(NS60S) | 45 | 70 | 380 | 238 | 129 | 227 | N | A1 | 1 |
D23
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN) (A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF65D23L | 60 | 98 | 520 | 238 | 178 | 225 | B4 | A1 | 0 |
| SMF65D23R | 60 | 98 | 520 | 238 | 178 | 225 | B4 | A1 | 1 |
| SMF75D23L | 66 | 110 | 560 | 238 | 178 | 225 | B4 | A1 | 0 |
| SMF75D23R | 66 | 110 | 560 | 238 | 178 | 225 | B4 | A1 | 1 |
D26(N50)
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN) (A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF80D26L(NX110-5L) | 70 | 118 | 620 | 257 | 176 | 225 | B4 | A1 | 0 |
| SMF80D26R(NX110-5) | 70 | 118 | 620 | 257 | 176 | 225 | B4 | A1 | 1 |
| SMF90D26L | 75 | 128 | 660 | 257 | 176 | 225 | B4 | A1 | 0 |
| SMF90D26R | 75 | 128 | 660 | 257 | 176 | 225 | B4 | A1 | 1 |
D31
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN) (A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF75D31L(N70L) | 70 | 118 | 620 | 306 | 175 | 225 | B4 | A1 | 0 |
| SMF75D31R(N70) | 70 | 118 | 620 | 306 | 175 | 225 | B4 | A1 | 1 |
| SMF95D31L | 80 | 138 | 660 | 306 | 175 | 225 | B4 | A1 | 0 |
| SMF95D31R | 80 | 138 | 660 | 306 | 175 | 225 | B4 | A1 | 1 |
| SMF105D31L | 90 | 158 | 760 | 306 | 175 | 225 | B4 | A1 | 0 |
| SMF105D31R | 90 | 158 | 760 | 306 | 175 | 225 | B4 | A1 | 1 |
| SMF120D31L | 100 | 179 | 860 | 306 | 175 | 225 | B4 | A1 | 0 |
| SMF120D31R | 100 | 179 | 860 | 306 | 175 | 225 | B4 | A1 | 1 |
G51
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN) (A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF155G51R | 150 | 290 | 1010 | 510 | 222 | 232 | B8 | A1 | 3 |
| SMF155G51L | 150 | 290 | 1010 | 510 | 222 | 232 | B8 | A1 | 4 |
| SMF185G51R | 170 | 336 | 1135 | 510 | 222 | 232 | B8 | A1 | 3 |
| SMF185G51L | 170 | 336 | 1135 | 510 | 222 | 232 | B8 | A1 | 4 |
| SMF200G51R | 180 | 360 | 1215 | 510 | 222 | 232 | B8 | A1 | 3 |
| SMF200G51L | 180 | 360 | 1215 | 510 | 222 | 232 | B8 | A1 | 4 |
| SMF205G51R | 190 | 383 | 1265 | 510 | 222 | 232 | B8 | A1 | 3 |
| SMF205G51L | 190 | 383 | 1265 | 510 | 222 | 232 | B8 | A1 | 4 |
H51
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN) (A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF200H51R(N200L) | 190 | 383 | 1000 | 512 | 278 | 239 | B8 | A1 | 3 |
| SMF200H51L (N200) | 190 | 383 | 1000 | 512 | 278 | 239 | B8 | A1 | 4 |
| SMF210H51L(N200) | 200 | 407 | 1050 | 512 | 278 | 239 | B8 | A1 | 3 |
| SMF210H51R (N200L) | 200 | 407 | 1050 | 512 | 278 | 239 | B8 | A1 | 4 |
| SMF226H51R | 218 | 451 | 1100 | 512 | 278 | 239 | B8 | A1 | 3 |
| SMF226H51L | 218 | 451 | 1100 | 512 | 278 | 239 | B8 | A1 | 4 |
| SMF245H51R(N245L) | 220 | 456 | 1100 | 512 | 278 | 239 | B8 | A1 | 3 |
| SMF245H51L(N245) | 220 | 456 | 1100 | 512 | 278 | 239 | B8 | A1 | 4 |
Non-sealed
B
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN) (A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF6502081 | 150 | 290 | 1010 | 510 | 222 | 232 | B8 | A1 | 3 |
| SMF65059 | 150 | 290 | 1010 | 510 | 222 | 232 | B8 | A1 | 4 |
| SMF67018 | 170 | 336 | 1135 | 510 | 222 | 232 | B8 | A1 | 3 |
| SMF67019 | 170 | 336 | 1135 | 510 | 222 | 232 | B8 | A1 | 4 |
| SMF68032 | 180 | 360 | 1215 | 510 | 222 | 232 | B8 | A1 | 3 |
| SMF68033 | 180 | 360 | 1215 | 510 | 222 | 232 | B8 | A1 | 4 |
| SMF69018 | 190 | 383 | 1265 | 510 | 222 | 232 | B8 | A1 | 3 |
| SMF69065 | 190 | 383 | 1265 | 510 | 222 | 232 | B8 | A1 | 4 |

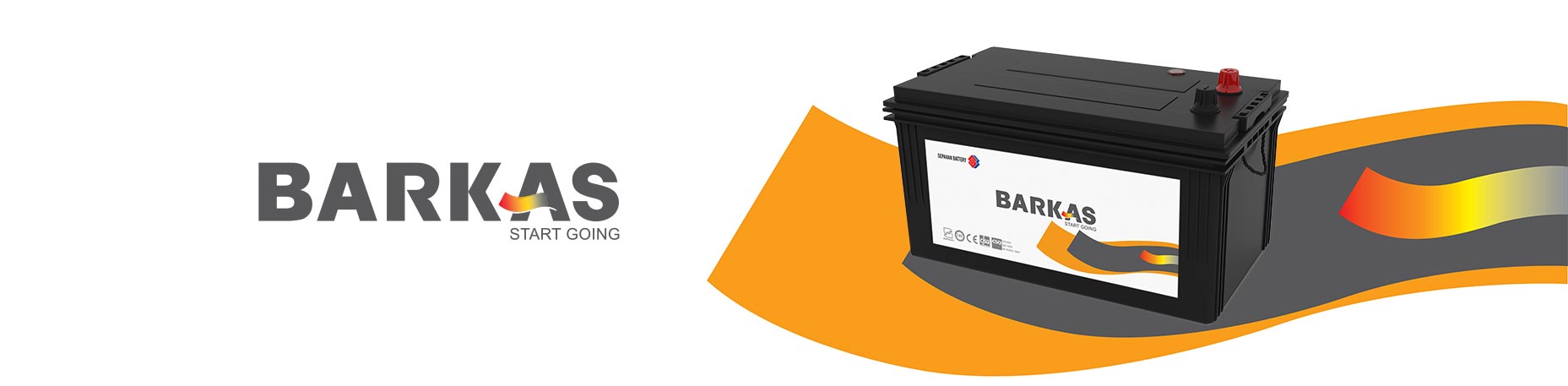

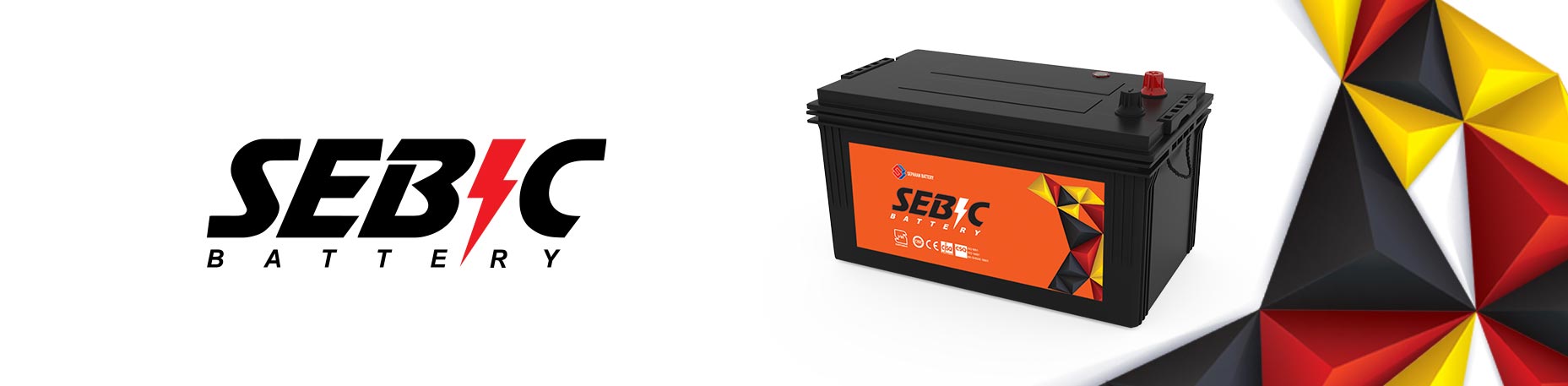

C
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN) (A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF69077 | 190 | 383 | 1000 | 512 | 278 | 239 | B8 | A1 | 3 |
| SMF69074 | 190 | 383 | 1000 | 512 | 278 | 239 | B8 | A1 | 4 |
| SMF70027 | 200 | 407 | 1050 | 512 | 278 | 239 | B8 | A1 | 3 |
| SMF70029 | 200 | 407 | 1050 | 512 | 278 | 239 | B8 | A1 | 4 |
| SMF71884 | 218 | 451 | 1100 | 512 | 278 | 239 | B8 | A1 | 3 |
| SMF71883 | 218 | 451 | 1100 | 512 | 278 | 239 | B8 | A1 | 4 |
| SMF72025 | 220 | 456 | 1100 | 512 | 278 | 239 | B8 | A1 | 3 |
| SMF72076 | 220 | 456 | 1100 | 512 | 278 | 239 | B8 | A1 | 4 |

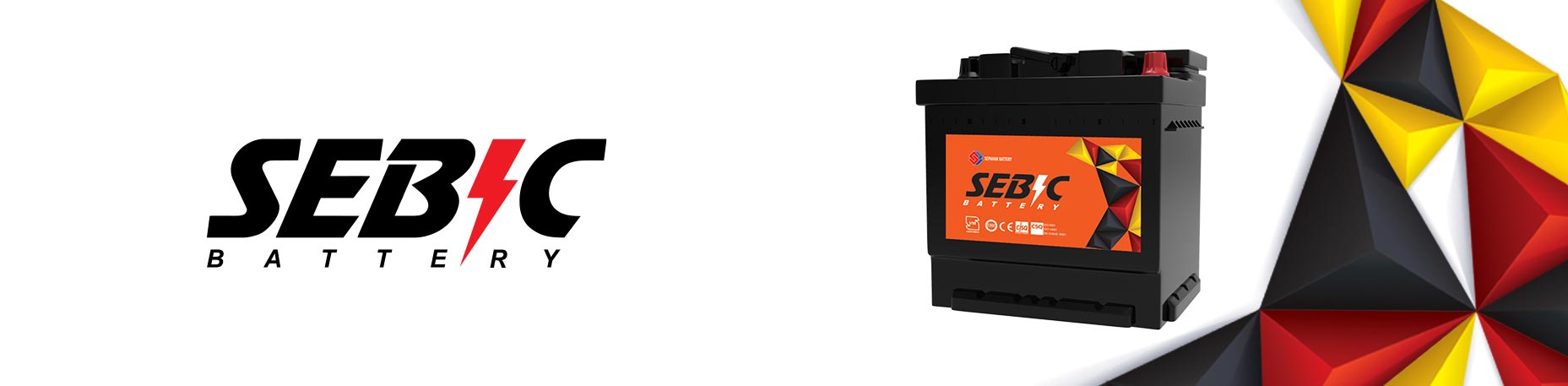

L1
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN) (A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF54459 | 40 | 61 | 380 | 207 | 175 | 190 | B3 | A1 | 0 |
| SMF54507 | 45 | 70 | 415 | 207 | 175 | 190 | B3 | A1 | 0 |
| SMF55090 | 50 | 79 | 470 | 207 | 175 | 190 | B3 | A1 | 0 |
L2
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN) (A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF55018 | 50 | 79 | 470 | 242 | 175 | 190 | B3 | A1 | 0 |
| SMF55559 | 55 | 88 | 505 | 242 | 175 | 190 | B3 | A1 | 0 |
| SMF56019 | 60 | 98 | 560 | 242 | 175 | 190 | B3 | A1 | 0 |
L3
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN) (A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF56638 | 66 | 110 | 595 | 278 | 175 | 190 | B3 | A1 | 0 |
| SMF57220 | 72 | 122 | 660 | 278 | 175 | 190 | B3 | A1 | 0 |
| SMF57412 | 74 | 126 | 685 | 278 | 175 | 190 | B3 | A1 | 0 |
L5
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN) (A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF58439 | 84 | 146 | 775 | 377 | 175 | 190 | B3 | A1 | 0 |
| SMF59018 | 90 | 154 | 830 | 377 | 175 | 190 | B3 | A1 | 0 |
| SMF59485 | 94 | 158 | 860 | 377 | 175 | 190 | B3 | A1 | 0 |
| SMF60044 | 100 | 179 | 920 | 377 | 175 | 190 | B3 | A1 | 0 |
B20
| TYPE JIS | Capacity 20 Hr (AH) | Reserve Capacity (min) | CCA EN (A) | Max.Overall Dimension(mm) | Base Hold down | Terminal Type | Terminal Layout | |||
|---|---|---|---|---|---|---|---|---|---|---|
| BOX | Part number | Length | Width | T.Height | ||||||
| B20 | SMF38B20L(NS40ZL) | 35 | 52 | 305 | 197 | 129 | 227 | N | A2 | 0 |
| SMF38B20R(NS40Z) | 35 | 52 | 305 | 197 | 129 | 227 | N | A2 | 1 | |
B24
| TYPE JIS | Capacity 20 Hr (AH) | Reserve Capacity (min) | CCA EN (A) | Max.Overall Dimension(mm) | Base Hold down | Terminal Type | Terminal Layout | |||
|---|---|---|---|---|---|---|---|---|---|---|
| BOX | Part number | Length | Width | T.Height | ||||||
| B24 | SMF50B24L(NS60LS) | 45 | 70 | 380 | 238 | 129 | 227 | N | A1 | 0 |
| SMF50B24R(NS60S) | 45 | 70 | 380 | 238 | 129 | 225 | N | A1 | 1 | |
D23
| TYPE JIS | Capacity 20 Hr (AH) | Reserve Capacity (min) | CCA EN (A) | Max.Overall Dimension(mm) | Base Hold down | Terminal Type | Terminal Layout | |||
|---|---|---|---|---|---|---|---|---|---|---|
| BOX | Part number | Length | Width | T.Height | ||||||
| D23 | SMF65D23L | 60 | 98 | 520 | 238 | 178 | 225 | B4 | A1 | 0 |
| SMF65D23R | 60 | 98 | 520 | 238 | 178 | 225 | B4 | A1 | 1 | |
| SMF75D23L | 66 | 110 | 560 | 238 | 178 | 225 | B4 | A1 | 0 | |
| SMF75D23R | 66 | 110 | 560 | 238 | 178 | 225 | B4 | A1 | 1 | |
D26
| TYPE JIS | Capacity 20 Hr (AH) | Reserve Capacity (min) | CCA EN (A) | Max.Overall Dimension(mm) | Base Hold down | Terminal Type | Terminal Layout | |||
|---|---|---|---|---|---|---|---|---|---|---|
| BOX | Part number | Length | Width | T.Height | ||||||
| D26 | SMF80D26L(NX110-5L) | 70 | 118 | 620 | 257 | 176 | 225 | B4 | A1 | 0 |
| SMF80D26R(NX110-5) | 70 | 118 | 620 | 257 | 176 | 225 | B4 | A1 | 1 | |
| SMF90D26L | 75 | 128 | 660 | 257 | 176 | 225 | B4 | A1 | 0 | |
| SMF90D26R | 75 | 128 | 660 | 257 | 176 | 225 | B4 | A1 | 1 | |
D31
| TYPE JIS | Capacity 20 Hr (AH) | Reserve Capacity (min) | CCA EN (A) | Max.Overall Dimension(mm) | Base Hold down | Terminal Type | Terminal Layout | |||
|---|---|---|---|---|---|---|---|---|---|---|
| BOX | Part number | Length | Width | T.Height | ||||||
| D31 | SMF75D31L(N70L) | 70 | 118 | 620 | 306 | 175 | 225 | B4 | A1 | 0 |
| SMF75D31R(N70) | 70 | 118 | 620 | 306 | 175 | 225 | B4 | A1 | 1 | |
| SMF95D31L | 80 | 138 | 660 | 306 | 175 | 225 | B4 | A1 | 0 | |
| SMF95D31R | 80 | 138 | 660 | 306 | 175 | 225 | B8 | A1 | 1 | |
| SMF105D31L | 90 | 158 | 760 | 306 | 175 | 225 | B4 | A1 | 0 | |
| SMF105D31R | 90 | 158 | 760 | 306 | 175 | 225 | B4 | A1 | 1 | |
| SMF120D31L | 100 | 179 | 860 | 306 | 175 | 225 | B4 | A1 | 0 | |
| SMF120D31R | 100 | 179 | 860 | 306 | 175 | 225 | B4 | A1 | 1 | |

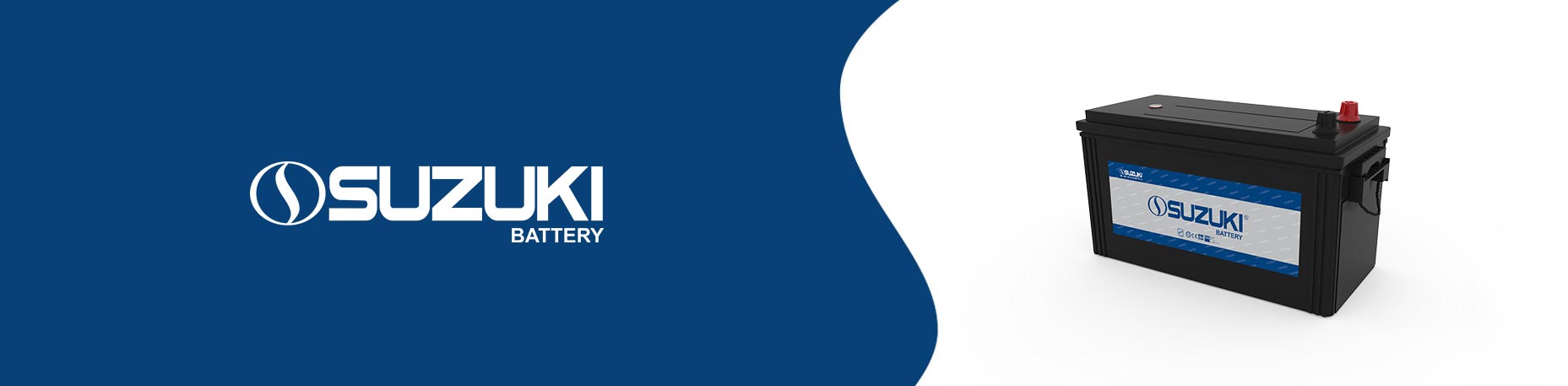

G51
| TYPE JIS | Capacity 20 Hr (AH) | Reserve Capacity (min) | CCA EN (A) | Max.Overall Dimension(mm) | Base Hold down | Terminal Type | Terminal Layout | |||
|---|---|---|---|---|---|---|---|---|---|---|
| BOX | Part number | Length | Width | T.Height | ||||||
| G51 | SMF155G51R | 150 | 290 | 1010 | 510 | 222 | 232 | B8 | A1 | 3 |
| SMF155G51L | 150 | 290 | 1010 | 510 | 222 | 232 | B8 | A1 | 4 | |
| SMF185G51R | 170 | 336 | 1135 | 510 | 222 | 232 | B8 | A1 | 3 | |
| SMF185G51L | 170 | 336 | 1135 | 510 | 222 | 232 | B8 | A1 | 4 | |
| SMF200G51R | 180 | 360 | 1215 | 510 | 222 | 232 | B8 | A1 | 3 | |
| SMF200G51L | 180 | 360 | 1215 | 510 | 222 | 232 | B8 | A1 | 4 | |
| SMF205G51R | 190 | 383 | 1265 | 510 | 222 | 232 | B8 | A1 | 3 | |
| SMF205G51L | 190 | 383 | 1265 | 510 | 222 | 232 | B8 | A1 | 4 | |

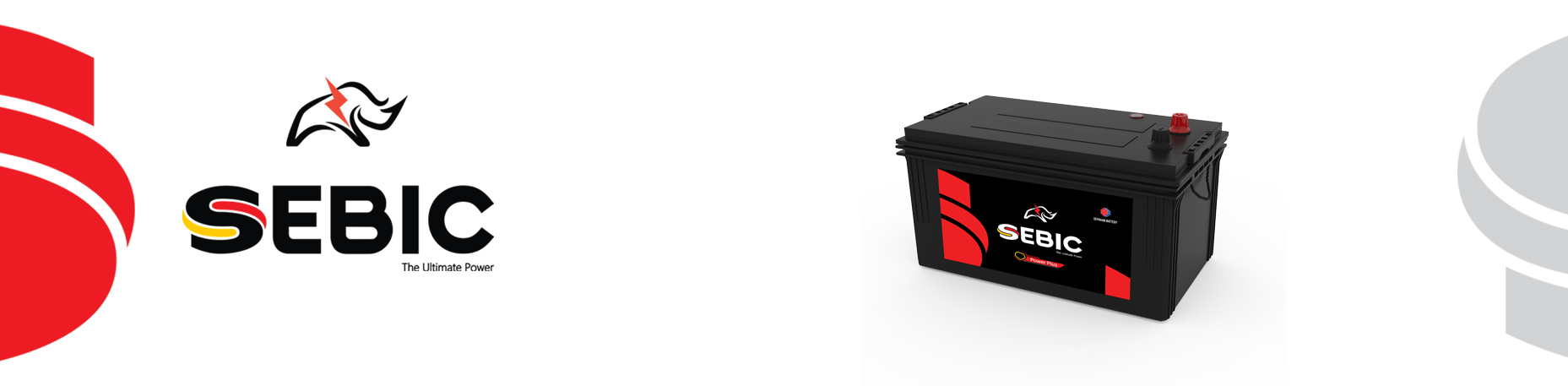

H51
| TYPE JIS | Capacity 20 Hr (AH) | Reserve Capacity (min) | CCA EN (A) | Max.Overall Dimension(mm) | Base Hold down | Terminal Type | Terminal Layout | |||
|---|---|---|---|---|---|---|---|---|---|---|
| BOX | Part number | Length | Width | T.Height | ||||||
| H51 | SMF210H51R | 200 | 407 | 1050 | 512 | 278 | 239 | B8 | A1 | 3 |
| SMF210H51L | 200 | 407 | 1050 | 512 | 278 | 239 | B8 | A1 | 4 | |
| SMF245H51R(N245L) | 220 | 456 | 1100 | 512 | 278 | 239 | B8 | A1 | 3 | |
| SMF245H51L(N245) | 220 | 456 | 1100 | 512 | 278 | 239 | B8 | A1 | 4 | |
| SMFH5122511111R | 225 | 468 | 1110 | 512 | 278 | 239 | B8 | A1 | 3 | |
| SMFH5122511111L | 225 | 468 | 1110 | 512 | 278 | 239 | B8 | A1 | 4 | |
L1
| TYPE JIS | Capacity 20 Hr (AH) | Reserve Capacity (min) | CCA EN (A) | Max.Overall Dimension(mm) | Base Hold down | Terminal Type | Terminal Layout | |||
|---|---|---|---|---|---|---|---|---|---|---|
| BOX | Part number | Length | Width | T.Height | ||||||
| L1 | SMF54507 | 45 | 70 | 415 | 207 | 175 | 190 | B3 | A1 | 0 |
| SMF55090 | 50 | 79 | 470 | 207 | 175 | 190 | B3 | A1 | 0 | |
L2
| TYPE JIS | Capacity 20 Hr (AH) | Reserve Capacity (min) | CCA EN (A) | Max.Overall Dimension(mm) | Base Hold down | Terminal Type | Terminal Layout | |||
|---|---|---|---|---|---|---|---|---|---|---|
| BOX | Part number | Length | Width | T.Height | ||||||
| L2 | SMF55018 | 50 | 79 | 470 | 242 | 175 | 190 | B3 | A1 | 0 |
| SMF55559 | 55 | 88 | 505 | 242 | 175 | 190 | B3 | A1 | 0 | |
| SMF56019 | 60 | 98 | 560 | 242 | 175 | 190 | B3 | A1 | 0 | |
L3
| TYPE JIS | Capacity 20 Hr (AH) | Reserve Capacity (min) | CCA EN (A) | Max.Overall Dimension(mm) | Base Hold down | Terminal Type | Terminal Layout | |||
|---|---|---|---|---|---|---|---|---|---|---|
| BOX | Part number | Length | Width | T.Height | ||||||
| L3 | SMF56638 | 66 | 110 | 595 | 278 | 175 | 190 | B3 | A1 | 0 |
| SMF57220 | 72 | 122 | 660 | 278 | 175 | 190 | B3 | A1 | 0 | |
| SMF57412 | 74 | 126 | 685 | 278 | 175 | 190 | B3 | A1 | 0 | |
L5
| TYPE JIS | Capacity 20 Hr (AH) | Reserve Capacity (min) | CCA EN (A) | Max.Overall Dimension(mm) | Base Hold down | Terminal Type | Terminal Layout | |||
|---|---|---|---|---|---|---|---|---|---|---|
| BOX | Part number | Length | Width | T.Height | ||||||
| L5 | SMF58439 | 84 | 146 | 775 | 350 | 175 | 188 | B3 | A1 | 0 |
| SMF59018 | 90 | 154 | 830 | 350 | 175 | 188 | B3 | A1 | 0 | |
| SMF59485 | 94 | 158 | 860 | 350 | 175 | 188 | B3 | A1 | 0 | |
| SMF60044 | 100 | 179 | 920 | 350 | 175 | 188 | B3 | A1 | 0 | |
Sealed
B20
| TYPE JIS | Capacity 20 Hr (AH) | Reserve Capacity (min) | CCA EN (A) | Max.Overall Dimension(mm) | Base Hold down | Terminal Type | Terminal Layout | |||
|---|---|---|---|---|---|---|---|---|---|---|
| BOX | Part number | Length | Width | T.Height | ||||||
| B20 | SMF38B20L(NS40ZL) | 35 | 52 | 305 | 197 | 129 | 227 | N | A2 | 0 |
| SMF38B20R(NS40Z) | 35 | 52 | 305 | 197 | 129 | 227 | N | A2 | 1 | |

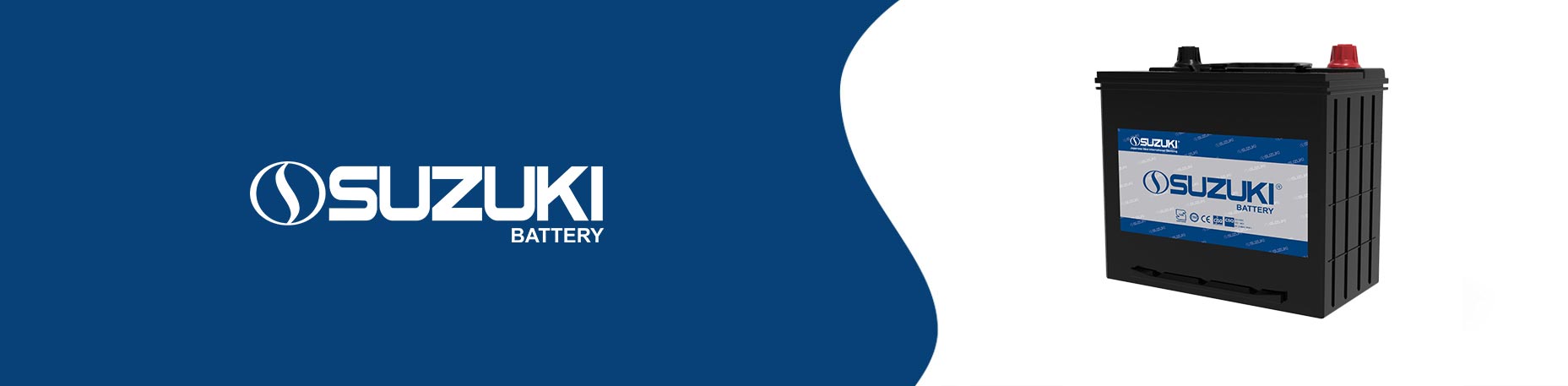

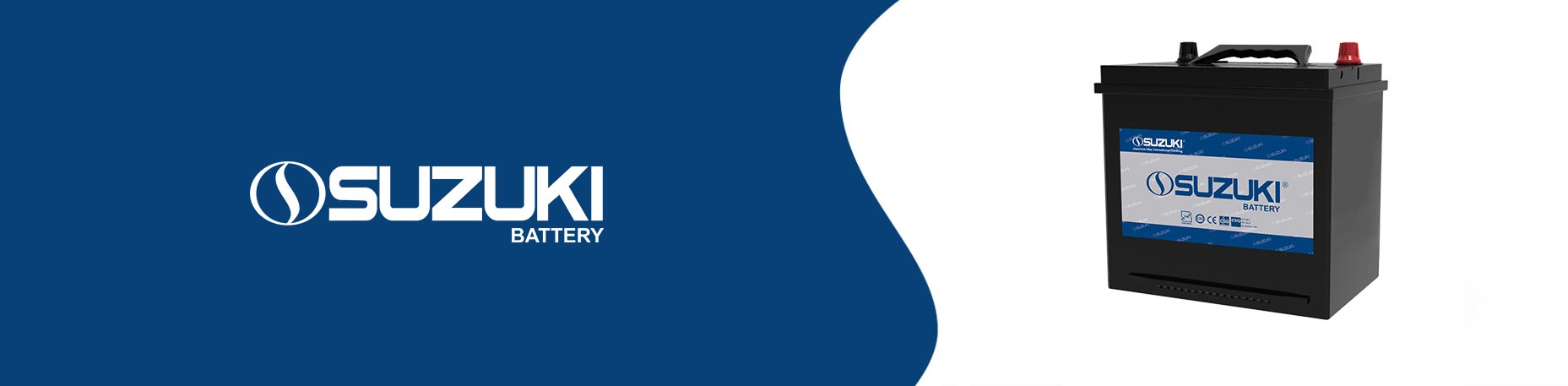

B24
| TYPE JIS | Capacity 20 Hr (AH) | Reserve Capacity (min) | CCA EN (A) | Max.Overall Dimension(mm) | Base Hold down | Terminal Type | Terminal Layout | |||
|---|---|---|---|---|---|---|---|---|---|---|
| BOX | Part number | Length | Width | T.Height | ||||||
| B24 | SMF50B24L(NS60LS) | 45 | 70 | 380 | 238 | 129 | 227 | N | A1 | 0 |
| SMF50B24R(NS60S) | 45 | 70 | 380 | 238 | 129 | 225 | N | A1 | 1 | |
D23
| TYPE JIS | Capacity 20 Hr (AH) | Reserve Capacity (min) | CCA EN (A) | Max.Overall Dimension(mm) | Base Hold down | Terminal Type | Terminal Layout | |||
|---|---|---|---|---|---|---|---|---|---|---|
| BOX | Part number | Length | Width | T.Height | ||||||
| D23 | SMF65D23L | 60 | 98 | 520 | 238 | 178 | 225 | B4 | A1 | 0 |
| SMF65D23R | 60 | 98 | 520 | 238 | 178 | 225 | B4 | A1 | 1 | |
| SMF75D23L | 66 | 110 | 560 | 238 | 178 | 225 | B4 | A1 | 0 | |
| SMF75D23R | 66 | 110 | 560 | 238 | 178 | 225 | B4 | A1 | 1 | |
D26
| TYPE JIS | Capacity 20 Hr (AH) | Reserve Capacity (min) | CCA EN (A) | Max.Overall Dimension(mm) | Base Hold down | Terminal Type | Terminal Layout | |||
|---|---|---|---|---|---|---|---|---|---|---|
| BOX | Part number | Length | Width | T.Height | ||||||
| D26 | SMF80D26L(NX110-5L) | 70 | 118 | 620 | 257 | 176 | 225 | B4 | A1 | 0 |
| SMF80D26R(NX110-5) | 70 | 118 | 620 | 257 | 176 | 225 | B4 | A1 | 1 | |
| SMF90D26L | 75 | 118 | 620 | 257 | 176 | 225 | B4 | A1 | 0 | |
| SMF90D26R | 75 | 128 | 660 | 257 | 176 | 225 | B4 | A1 | 1 | |
D31
| TYPE JIS | Capacity 20 Hr (AH) |
Reserve Capacity (min) |
CCA EN (A) |
Max.Overall Dimension(mm) | Base Hold down |
Terminal Type |
Terminal Layout |
|||
|---|---|---|---|---|---|---|---|---|---|---|
| BOX | Part number | Length | Width | T.Height | ||||||
| D31 | SMF75D31L(N70L) | 70 | 118 | 620 | 306 | 175 | 225 | B4 | A1 | 0 |
| SMF75D31R(N70) | 70 | 118 | 620 | 306 | 175 | 225 | B4 | A1 | 1 | |
| SMF95D31L | 80 | 138 | 660 | 306 | 175 | 225 | B4 | A1 | 0 | |
| SMF95D31R | 80 | 138 | 660 | 306 | 175 | 225 | B8 | A1 | 1 | |
| SMF105D31L | 90 | 158 | 760 | 306 | 175 | 225 | B4 | A1 | 0 | |
| SMF105D31R | 90 | 158 | 760 | 306 | 175 | 225 | B4 | A1 | 1 | |
| SMF120D31L | 100 | 179 | 860 | 306 | 175 | 225 | B4 | A1 | 0 | |
| SMF120D31R | 100 | 179 | 860 | 306 | 175 | 225 | B4 | A1 | 1 | |
G51
| TYPE JIS | Capacity 20 Hr (AH) | Reserve Capacity (min) | CCA EN (A) | Max.Overall Dimension(mm) | Base Hold down | Terminal Type | Terminal Layout | |||
|---|---|---|---|---|---|---|---|---|---|---|
| BOX | Part number | Length | Width | T.Height | ||||||
| G51 | SMF155G51R | 150 | 290 | 1010 | 510 | 222 | 232 | B8 | A1 | 3 |
| SMF155G51L | 150 | 290 | 1010 | 510 | 222 | 232 | B8 | A1 | 4 | |
| SMF185G51R | 170 | 336 | 1135 | 510 | 222 | 232 | B8 | A1 | 3 | |
| SMF185G51L | 170 | 336 | 1135 | 510 | 222 | 232 | B8 | A1 | 4 | |
| SMF200G51R | 180 | 360 | 1215 | 510 | 222 | 232 | B8 | A1 | 3 | |
| SMF200G51L | 180 | 190 | 1215 | 510 | 222 | 232 | B8 | A1 | 4 | |
| SMF205G51R | 190 | 383 | 1265 | 510 | 222 | 232 | B8 | A1 | 3 | |
| SMF205G51L | 190 | 238 | 1265 | 510 | 222 | 232 | B8 | A1 | 4 | |
H51
| TYPE JIS | Capacity 20 Hr (AH) | Reserve Capacity (min) | CCA EN (A) | Max.Overall Dimension(mm) | Base Hold down | Terminal Type | Terminal Layout | |||
|---|---|---|---|---|---|---|---|---|---|---|
| BOX | Part number | Length | Width | T.Height | ||||||
| H51 | SMF210H51R | 200 | 407 | 1050 | 512 | 278 | 239 | B8 | A1 | 3 |
| SMF210H51L | 200 | 407 | 1050 | 512 | 278 | 239 | B8 | A1 | 4 | |
| SMF245H51R(N245L) | 220 | 456 | 1100 | 512 | 278 | 239 | B8 | A1 | 3 | |
| SMF245H51L(N245) | 220 | 456 | 1100 | 512 | 278 | 239 | B8 | A1 | 4 | |
| SMFH5122511111R | 225 | 456 | 1110 | 512 | 278 | 239 | B8 | A1 | 3 | |
| SMFH5122511111L | 225 | 468 | 1110 | 512 | 278 | 239 | B8 | A1 | 4 | |
Non-sealed
D23
| TYPE JIS | Capacity 20 Hr (AH) | Reserve Capacity (min) | CCA EN (A) | Max.Overall Dimension(mm) | Base Hold down | Terminal Type | Terminal Layout | |||
|---|---|---|---|---|---|---|---|---|---|---|
| BOX | Part number | Length | Width | T.Height | ||||||
| D23 | D23060520101 | 60 | 98 | 520 | 238 | 178 | 225 | B4 | A1 | 0 |
| D23060520111 | 60 | 98 | 520 | 238 | 178 | 225 | B4 | A1 | 1 | |
| D23066560101 | 66 | 110 | 560 | 238 | 178 | 225 | B4 | A1 | 0 | |
| D23066560111 | 66 | 110 | 560 | 238 | 178 | 225 | B4 | A1 | 1 | |
N50Z
| TYPE JIS | Capacity 20 Hr (AH) | Reserve Capacity (min) | CCA EN (A) | Max.Overall Dimension(mm) | Base Hold down | Terminal Type | Terminal Layout | |||
|---|---|---|---|---|---|---|---|---|---|---|
| BOX | Part number | Length | Width | T.Height | ||||||
| N50Z | 65D26R | 60 | 98 | 520 | 284 | 173 | 216 | B8 | A1 | 1 |
| 75D26L | 66 | 110 | 560 | 284 | 173 | 216 | B8 | A1 | 0 | |
| 75D26R | 66 | 110 | 560 | 284 | 173 | 216 | B8 | A1 | 1 | |
D31
| TYPE JIS | Capacity 20 Hr (AH) |
Reserve Capacity (min) |
CCA EN (A) |
Max.Overall Dimension(mm) | Base Hold down |
Terminal Type |
Terminal Layout |
|||
|---|---|---|---|---|---|---|---|---|---|---|
| BOX | Part number | Length | Width | T.Height | ||||||
| D31 | D31070620111 | 70 | 118 | 620 | 306 | 175 | 225 | B4 | A1 | 0 |
| D31070620111 | 70 | 118 | 620 | 306 | 175 | 225 | B4 | A1 | 1 | |
| D31080660101 | 80 | 138 | 660 | 306 | 175 | 225 | B4 | A1 | 0 | |
| D31080660111 | 80 | 138 | 660 | 306 | 175 | 225 | B4 | A1 | 1 | |
| 105D31L | 95 | 169 | 820 | 306 | 175 | 225 | B4 | A1 | 0 | |
| 105D31R | 95 | 169 | 820 | 306 | 175 | 225 | B4 | A1 | 1 | |
| 120D31L | 100 | 179 | 860 | 306 | 175 | 225 | B4 | A1 | 0 | |
| 120D31R | 100 | 179 | 860 | 306 | 175 | 225 | B4 | A1 | 0 | |
E41
| TYPE JIS | Capacity 20 Hr (AH) | Reserve Capacity (min) | CCA EN (A) | Max.Overall Dimension(mm) | Base Hold down | Terminal Type | Terminal Layout | |||
|---|---|---|---|---|---|---|---|---|---|---|
| BOX | Part number | Length | Width | T.Height | ||||||
| E41 | 125E41L | 120 | 223 | 1020 | 410 | 176 | 234 | B8 | A1 | 0 |
G51
| TYPE JIS | Capacity 20 Hr (AH) | Reserve Capacity (min) | CCA EN (A) | Max.Overall Dimension(mm) | Base Hold down | Terminal Type | Terminal Layout | |||
|---|---|---|---|---|---|---|---|---|---|---|
| BOX | Part number | Length | Width | T.Height | ||||||
| G51 | 155G51R | 150 | 290 | 1010 | 513 | 222 | 217 | B8 | A1 | 3 |
| 185G51R | 170 | 336 | 1135 | 513 | 222 | 217 | B8 | A1 | 3 | |
| 200G51R | 180 | 360 | 1215 | 513 | 222 | 217 | B8 | A1 | 3 | |
H51
| TYPE JIS | Capacity 20 Hr (AH) |
Reserve Capacity (min) |
CCA EN (A) |
Max.Overall Dimension(mm) | Base Hold down |
Terminal Type |
Terminal Layout |
|||
|---|---|---|---|---|---|---|---|---|---|---|
| BOX | Part number | Length | Width | T.Height | ||||||
| G51 | 210H51R | 200 | 407 | 1050 | 512 | 278 | 239 | B8 | A1 | 3 |
| 245H51R | 220 | 456 | 1100 | 512 | 278 | 239 | B8 | A1 | 3 | |
| H51225111131 | 180 | 360 | 1215 | 513 | 222 | 217 | B8 | A1 | 3 | |
Sealed
L1
| TYPE JIS | Capacity 20 Hr (AH) | Reserve Capacity (min) | CCA EN (A) | Max.Overall Dimension(mm) | Base Hold down | Terminal Type | Terminal Layout | |||
|---|---|---|---|---|---|---|---|---|---|---|
| BOX | Part number | Length | Width | T.Height | ||||||
| L1 | SMF54507 | 45 | 70 | 415 | 207 | 175 | 190 | B3 | A1 | 0 |
| SMF55090 | 50 | 79 | 470 | 207 | 175 | 190 | B3 | A1 | 0 | |
L2
| TYPE JIS | Capacity 20 Hr (AH) | Reserve Capacity (min) | CCA EN (A) | Max.Overall Dimension(mm) | Base Hold down | Terminal Type | Terminal Layout | |||
|---|---|---|---|---|---|---|---|---|---|---|
| BOX | Part number | Length | Width | T.Height | ||||||
| L2 | SMF55018 | 50 | 79 | 470 | 242 | 175 | 190 | B3 | A1 | 0 |
| SMF55559 | 55 | 88 | 505 | 242 | 175 | 190 | B3 | A1 | 0 | |
| SMF56019 | 60 | 98 | 560 | 242 | 175 | 190 | B3 | A1 | 0 | |
L3
| TYPE JIS | Capacity 20 Hr (AH) | Reserve Capacity (min) | CCA EN (A) | Max.Overall Dimension(mm) | Base Hold down | Terminal Type | Terminal Layout | |||
|---|---|---|---|---|---|---|---|---|---|---|
| BOX | Part number | Length | Width | T.Height | ||||||
| L3 | SMF56638 | 66 | 110 | 595 | 278 | 175 | 190 | B3 | A1 | 0 |
| SMF57220 | 72 | 122 | 660 | 278 | 175 | 190 | B3 | A1 | 0 | |
| SMF57412 | 74 | 126 | 685 | 278 | 175 | 190 | B3 | A1 | 0 | |
L5
| TYPE JIS | Capacity 20 Hr (AH) | Reserve Capacity (min) | CCA EN (A) | Max.Overall Dimension(mm) | Base Hold down | Terminal Type | Terminal Layout | |||
|---|---|---|---|---|---|---|---|---|---|---|
| BOX | Part number | Length | Width | T.Height | ||||||
| L5 | SMF58439 | 84 | 146 | 775 | 350 | 175 | 188 | B3 | A1 | 0 |
| SMF59018 | 90 | 154 | 830 | 350 | 175 | 188 | B3 | A1 | 0 | |
| SMF59485 | 94 | 158 | 860 | 350 | 175 | 188 | B3 | A1 | 0 | |
| SMF60044 | 100 | 179 | 920 | 350 | 175 | 188 | B3 | A1 | 0 | |
Non-sealed
L1
| TYPE JIS | Capacity 20 Hr (AH) | Reserve Capacity (min) | CCA EN (A) | Max.Overall Dimension(mm) | Base Hold down | Terminal Type | Terminal Layout | |||
|---|---|---|---|---|---|---|---|---|---|---|
| BOX | Part number | Length | Width | T.Height | ||||||
| L1 | 54503 | 45 | 70 | 415 | 207 | 175 | 190 | B3 | A1 | 0 |
| 55090 | 50 | 79 | 470 | 207 | 175 | 190 | B3 | A1 | 0 | |
L2
| TYPE JIS | Capacity 20 Hr (AH) | Reserve Capacity (min) | CCA EN (A) | Max.Overall Dimension(mm) | Base Hold down | Terminal Type | Terminal Layout | |||
|---|---|---|---|---|---|---|---|---|---|---|
| BOX | Part number | Length | Width | T.Height | ||||||
| L2 | 55014 | 50 | 79 | 470 | 242 | 175 | 190 | B3 | A1 | 0 |
| 55559 | 55 | 88 | 505 | 242 | 175 | 190 | B3 | A1 | 0 | |
| 56019 | 60 | 98 | 560 | 242 | 175 | 190 | B3 | A1 | 0 | |
L3
| TYPE JIS | Capacity 20 Hr (AH) | Reserve Capacity (min) | CCA EN (A) | Max.Overall Dimension(mm) | Base Hold down | Terminal Type | Terminal Layout | |||
|---|---|---|---|---|---|---|---|---|---|---|
| BOX | Part number | Length | Width | T.Height | ||||||
| L3 | 56638 | 66 | 110 | 595 | 278 | 175 | 190 | B3 | A1 | 0 |
| 57220 | 72 | 122 | 660 | 278 | 175 | 190 | B3 | A1 | 0 | |
| 57412 | 74 | 126 | 685 | 278 | 175 | 190 | B3 | A1 | 0 | |
L5
| TYPE JIS | Capacity 20 Hr (AH) | Reserve Capacity (min) | CCA EN (A) | Max.Overall Dimension(mm) | Base Hold down | Terminal Type | Terminal Layout | |||
|---|---|---|---|---|---|---|---|---|---|---|
| BOX | Part number | Length | Width | T.Height | ||||||
| L5 | 58437 | 84 | 146 | 775 | 350 | 175 | 188 | B3 | A1 | 0 |
| 59039 | 90 | 154 | 830 | 350 | 175 | 188 | B3 | A1 | 0 | |
| 59440 | 94 | 158 | 860 | 350 | 175 | 188 | B3 | A1 | 0 | |
| 60038 | 100 | 179 | 920 | 350 | 175 | 188 | B3 | A1 | 0 | |
D23
| TYPE JIS | Capacity 20 Hr (AH) | Reserve Capacity (min) | CCA EN (A) | Max.Overall Dimension(mm) | Base Hold down | Terminal Type | Terminal Layout | |||
|---|---|---|---|---|---|---|---|---|---|---|
| BOX | Part number | Length | Width | T.Height | ||||||
| D23 | D23060520101 | 60 | 98 | 520 | 238 | 178 | 225 | B4 | A1 | 0 |
| D23060520111 | 60 | 98 | 520 | 238 | 178 | 225 | B4 | A1 | 1 | |
| D23066560101 | 66 | 110 | 560 | 238 | 178 | 225 | B4 | A1 | 0 | |
| D23066560111 | 66 | 110 | 560 | 238 | 178 | 225 | B4 | A1 | 1 | |
N50Z
| TYPE JIS | Capacity 20 Hr (AH) | Reserve Capacity (min) | CCA EN (A) | Max.Overall Dimension(mm) | Base Hold down | Terminal Type | Terminal Layout | |||
|---|---|---|---|---|---|---|---|---|---|---|
| BOX | Part number | Length | Width | T.Height | ||||||
| N50Z | 65D26R | 60 | 98 | 520 | 284 | 173 | 216 | B8 | A1 | 1 |
| 75D26L | 66 | 110 | 560 | 284 | 173 | 216 | B8 | A1 | 0 | |
| 75D26R | 66 | 110 | 560 | 284 | 173 | 216 | B8 | A1 | 1 | |
D31
| TYPE JIS | Capacity 20 Hr (AH) | Reserve Capacity (min) | CCA EN (A) | Max.Overall Dimension(mm) | Base Hold down | Terminal Type | Terminal Layout | |||
|---|---|---|---|---|---|---|---|---|---|---|
| BOX | Part number | Length | Width | T.Height | ||||||
| D31 | D31070620111 | 70 | 118 | 620 | 306 | 175 | 225 | B4 | A1 | 0 |
| D31070620111 | 70 | 118 | 620 | 306 | 175 | 225 | B4 | A1 | 1 | |
| D31080660101 | 80 | 138 | 660 | 306 | 175 | 225 | B4 | A1 | 0 | |
| D31080660111 | 80 | 138 | 660 | 306 | 175 | 225 | B4 | A1 | 1 | |
| 105D31L | 95 | 169 | 820 | 306 | 175 | 225 | B4 | A1 | 0 | |
| 105D31R | 95 | 169 | 820 | 306 | 175 | 225 | B4 | A1 | 1 | |
| 120D31L | 100 | 179 | 860 | 306 | 175 | 225 | B4 | A1 | 0 | |
| 120D31R | 100 | 179 | 860 | 306 | 175 | 225 | B4 | A1 | 1 | |
E41
| TYPE JIS | Capacity 20 Hr (AH) | Reserve Capacity (min) | CCA EN (A) | Max.Overall Dimension(mm) | Base Hold down | Terminal Type | Terminal Layout | |||
|---|---|---|---|---|---|---|---|---|---|---|
| BOX | Part number | Length | Width | T.Height | ||||||
| E41 | 125E41L | 120 | 223 | 1020 | 410 | 176 | 234 | B8 | A1 | 0 |
G51
| TYPE JIS | Capacity 20 Hr (AH) | Reserve Capacity (min) | CCA EN (A) | Max.Overall Dimension(mm) | Base Hold down | Terminal Type | Terminal Layout | |||
|---|---|---|---|---|---|---|---|---|---|---|
| BOX | Part number | Length | Width | T.Height | ||||||
| G51 | 155G51R | 150 | 290 | 1010 | 513 | 222 | 217 | B8 | A1 | 3 |
| 185G51R | 170 | 336 | 1135 | 513 | 222 | 217 | B8 | A1 | 3 | |
| 200G51R | 180 | 360 | 1215 | 513 | 222 | 217 | B8 | A1 | 3 | |
| 200G51R | 190 | 383 | 1265 | 513 | 222 | 217 | B8 | A1 | 3 | |
H51
| TYPE JIS | Capacity 20 Hr (AH) | Reserve Capacity (min) | CCA EN (A) | Max.Overall Dimension(mm) | Base Hold down | Terminal Type | Terminal Layout | |||
|---|---|---|---|---|---|---|---|---|---|---|
| BOX | Part number | Length | Width | T.Height | ||||||
| G51 | 210H51R | 200 | 407 | 1050 | 512 | 278 | 239 | B8 | A1 | 3 |
| 245H51R | 220 | 456 | 1100 | 512 | 278 | 239 | B8 | A1 | 3 | |
| H51225111131 | 225 | 468 | 1110 | 512 | 278 | 239 | B8 | A1 | 3 | |
L1
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| EFB.SMF55087 | 50 | 75 | 520 | 207 | 175 | 190 | B3 | A1 | 0 |
L2
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| EFB.SMF55088 | 50 | 75 | 520 | 242 | 175 | 190 | B3 | A1 | 0 |
| EFB.SMF56020 | 60 | 94 | 600 | 242 | 175 | 190 | B3 | A1 | 0 |
L3
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| EFB.SMF57031 | 70 | 114 | 690 | 278 | 175 | 190 | B3 | A1 | 0 |
D23
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| EFB.SMF58D23L | 60 | 94 | 580 | 238 | 178 | 225 | B4 | A1 | 0 |
| EFB.SMF58D23R | 60 | 94 | 580 | 238 | 178 | 225 | B4 | A1 | 1 |
D26
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| EFB.SMF68D26L | 70 | 114 | 680 | 257 | 176 | 225 | B4 | A1 | 0 |
| EFB.SMF68D26R | 70 | 114 | 680 | 257 | 176 | 225 | B4 | A1 | 1 |
| EFB.SMF78D26L | 80 | 134 | 780 | 257 | 176 | 225 | B4 | A1 | 0 |
| EFB.SMF78D26R | 80 | 134 | 780 | 257 | 176 | 225 | B4 | A1 | 1 |
D31
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| EFB.SMF90D31L | 90 | 158 | 800 | 306 | 175 | 225 | B4 | A1 | 0 |
| EFB.SMF90D31R | 90 | 158 | 800 | 306 | 175 | 225 | B4 | A1 | 1 |
| EFB.SMF100D31L | 100 | 179 | 900 | 306 | 175 | 225 | B4 | A1 | 0 |
| EFB.SMF100D31R | 100 | 179 | 900 | 306 | 175 | 225 | B4 | A1 | 1 |
L1
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF54507 | 45 | 70 | 415 | 207 | 175 | 190 | B3 | A1 | 0 |
| SMF55090 | 50 | 79 | 470 | 207 | 175 | 190 | B3 | A1 | 0 |
L2
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF55018 | 50 | 79 | 470 | 242 | 175 | 190 | B3 | A1 | 0 |
| SMF55559 | 55 | 88 | 505 | 242 | 175 | 190 | B3 | A1 | 0 |
| SMF56019 | 60 | 98 | 560 | 242 | 175 | 190 | B3 | A1 | 0 |
L3
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF56638 | 66 | 110 | 595 | 278 | 175 | 190 | B3 | A1 | 0 |
| SMF57220 | 72 | 122 | 660 | 278 | 175 | 190 | B3 | A1 | 0 |
L5
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF58439 | 84 | 146 | 775 | 350 | 175 | 188 | B3 | A1 | 0 |
| SMF59018 | 90 | 154 | 830 | 350 | 175 | 188 | B3 | A1 | 0 |
| SMF59485 | 94 | 158 | 860 | 350 | 175 | 188 | B3 | A1 | 0 |
| SMF60044 | 100 | 179 | 920 | 350 | 175 | 188 | B3 | A1 | 0 |
L1
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 54503 | 45 | 70 | 415 | 207 | 175 | 190 | B3 | A1 | 0 |
| 55090 | 50 | 79 | 470 | 207 | 175 | 190 | B3 | A1 | 0 |
L2
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 55014 | 50 | 79 | 470 | 242 | 175 | 190 | B3 | A1 | 0 |
| 55559 | 55 | 88 | 505 | 242 | 175 | 190 | B3 | A1 | 0 |
| 56019 | 60 | 98 | 560 | 242 | 175 | 190 | B3 | A1 | 0 |
L3
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 56638 | 66 | 110 | 595 | 278 | 175 | 190 | B3 | A1 | 0 |
| 57220 | 72 | 122 | 660 | 278 | 175 | 190 | B3 | A1 | 0 |
L5
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 58437 | 84 | 146 | 775 | 350 | 175 | 188 | B3 | A1 | 0 |
| 59039 | 90 | 154 | 830 | 350 | 175 | 188 | B3 | A1 | 0 |
| 59440 | 94 | 158 | 860 | 350 | 175 | 188 | B3 | A1 | 0 |
| 60038 | 100 | 179 | 920 | 350 | 175 | 188 | B3 | A1 | 0 |
Sealed
L1
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF54507 | 45 | 70 | 415 | 207 | 175 | 190 | B3 | A1 | 0 |
| SMF55090 | 50 | 79 | 470 | 207 | 175 | 190 | B3 | A1 | 0 |
L2
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF55018 | 50 | 79 | 470 | 242 | 175 | 190 | B3 | A1 | 0 |
| SMF55559 | 55 | 88 | 505 | 242 | 175 | 190 | B3 | A1 | 0 |
| SMF56019 | 60 | 98 | 560 | 242 | 175 | 190 | B3 | A1 | 0 |
L3
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF56638 | 66 | 110 | 595 | 278 | 175 | 190 | B3 | A1 | 0 |
| SMF57220 | 72 | 122 | 660 | 278 | 175 | 190 | B3 | A1 | 0 |
L5
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF58439 | 84 | 146 | 775 | 350 | 175 | 188 | B3 | A1 | 0 |
| SMF59018 | 90 | 154 | 830 | 350 | 175 | 188 | B3 | A1 | 0 |
| SMF59485 | 94 | 158 | 860 | 350 | 175 | 188 | B3 | A1 | 0 |
| SMF60044 | 100 | 179 | 920 | 350 | 175 | 188 | B3 | A1 | 0 |
Non-sealed
L1
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 54503 | 45 | 70 | 415 | 207 | 175 | 190 | B3 | A1 | 0 |
| 55090 | 50 | 79 | 470 | 207 | 175 | 190 | B3 | A1 | 0 |
L2
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 55014 | 50 | 79 | 470 | 242 | 175 | 190 | B3 | A1 | 0 |
| 55559 | 55 | 88 | 505 | 242 | 175 | 190 | B3 | A1 | 0 |
| 56019 | 60 | 98 | 560 | 242 | 175 | 190 | B3 | A1 | 0 |
L3
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 56638 | 66 | 110 | 595 | 278 | 175 | 190 | B3 | A1 | 0 |
| 57220 | 72 | 122 | 660 | 278 | 175 | 190 | B3 | A1 | 0 |
L5
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 58437 | 84 | 146 | 775 | 350 | 175 | 188 | B3 | A1 | 0 |
| 59039 | 90 | 154 | 830 | 350 | 175 | 188 | B3 | A1 | 0 |
| 59440 | 94 | 158 | 860 | 350 | 175 | 188 | B3 | A1 | 0 |
| 60038 | 100 | 179 | 920 | 350 | 175 | 188 | B3 | A1 | 0 |
B20
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF38B20L(NS40ZL) | 35 | 52 | 305 | 197 | 129 | 227 | N | A2 | 0 |
| SMF38B20R(NS40Z) | 35 | 52 | 305 | 197 | 129 | 227 | N | A2 | 1 |
B24
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF50B24L(NS60LS) | 45 | 70 | 380 | 238 | 129 | 227 | N | A1 | 0 |
| SMF50B24R(NS60S) | 45 | 70 | 380 | 238 | 129 | 227 | N | A1 | 1 |
D23
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF65D23L | 60 | 98 | 520 | 238 | 178 | 225 | B4 | A1 | 0 |
| SMF65D23R | 60 | 98 | 520 | 238 | 178 | 225 | B4 | A1 | 1 |
| SMF75D23L | 66 | 110 | 560 | 238 | 178 | 225 | B4 | A1 | 0 |
| SMF75D23R | 66 | 110 | 560 | 238 | 178 | 225 | B4 | A1 | 1 |
D26
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF80D26L(NX110-5L) | 70 | 118 | 620 | 257 | 176 | 225 | B4 | A1 | 0 |
| SMF80D26R(NX110-5) | 70 | 118 | 620 | 257 | 176 | 225 | B4 | A1 | 1 |
| SMF90D26L | 75 | 128 | 660 | 257 | 176 | 225 | B4 | A1 | 0 |
| SMF90D26R | 75 | 128 | 660 | 257 | 176 | 225 | B4 | A1 | 1 |
D31
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF75D31L(N70L) | 70 | 118 | 620 | 306 | 175 | 225 | B4 | A1 | 0 |
| SMF75D31R(N70) | 70 | 118 | 620 | 306 | 175 | 225 | B4 | A1 | 1 |
| SMF95D31L | 80 | 138 | 660 | 306 | 175 | 225 | B4 | A1 | 0 |
| SMF95D31R | 80 | 138 | 660 | 306 | 175 | 225 | B4 | A1 | 1 |
| SMF105D31L | 90 | 158 | 760 | 306 | 175 | 225 | B4 | A1 | 0 |
| SMF105D31R | 90 | 158 | 760 | 306 | 175 | 225 | B4 | A1 | 1 |
| SMF120D31L | 100 | 179 | 860 | 306 | 175 | 225 | B4 | A1 | 0 |
| SMF120D31R | 100 | 179 | 860 | 306 | 175 | 225 | B4 | A1 | 1 |
G51
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF155G51R | 150 | 290 | 1010 | 510 | 222 | 232 | B8 | A1 | 3 |
| SMF155G51L | 150 | 290 | 1010 | 510 | 222 | 232 | B8 | A1 | 4 |
| SMF185G51R | 170 | 336 | 1135 | 510 | 222 | 232 | B8 | A1 | 3 |
| SMF185G51L | 170 | 336 | 1135 | 510 | 222 | 232 | B8 | A1 | 4 |
| SMF200G51R | 180 | 360 | 1215 | 510 | 222 | 232 | B8 | A1 | 3 |
| SMF200G51L | 180 | 360 | 1215 | 510 | 222 | 232 | B8 | A1 | 4 |
| SMF205G51R | 190 | 383 | 1265 | 510 | 222 | 232 | B8 | A1 | 3 |
| SMF205G51L | 190 | 383 | 1265 | 510 | 222 | 232 | B8 | A1 | 4 |
H51
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF210H51R | 200 | 407 | 1050 | 512 | 278 | 239 | B8 | A1 | 3 |
| SMF210H51L | 200 | 407 | 1050 | 512 | 278 | 239 | B8 | A1 | 4 |
| SMF245H51R(N245L) | 220 | 456 | 1100 | 512 | 278 | 239 | B8 | A1 | 3 |
| SMF245H51L(N245) | 220 | 456 | 1100 | 512 | 278 | 239 | B8 | A1 | 4 |
| SMFH5122511111R | 225 | 468 | 1110 | 512 | 278 | 239 | B8 | A1 | 3 |
| SMFH5122511111L | 225 | 468 | 1110 | 512 | 278 | 239 | B8 | A1 | 4 |
D23
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| D23060520101 | 60 | 98 | 520 | 238 | 178 | 225 | B4 | A1 | 0 |
| D23060520111 | 60 | 98 | 520 | 238 | 178 | 225 | B4 | A1 | 1 |
| D23066560101 | 66 | 110 | 560 | 238 | 178 | 225 | B4 | A1 | 0 |
| D23066560111 | 66 | 110 | 560 | 238 | 178 | 225 | B4 | A1 | 1 |
N50Z
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 65D26R | 60 | 98 | 520 | 248 | 173 | 216 | B8 | A1 | 1 |
| 75D26L | 66 | 110 | 560 | 284 | 173 | 216 | B8 | A1 | 0 |
| 75D26R | 66 | 110 | 560 | 284 | 173 | 216 | B8 | A1 | 1 |
D31
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| D31070620111 | 70 | 118 | 620 | 306 | 175 | 225 | B4 | A1 | 0 |
| D31070620111 | 70 | 118 | 620 | 306 | 175 | 225 | B4 | A1 | 1 |
| D31080660101 | 80 | 138 | 660 | 306 | 175 | 225 | B4 | A1 | 0 |
| D31080660111 | 80 | 138 | 660 | 306 | 175 | 225 | B4 | A1 | 1 |
| 105D31L | 95 | 169 | 820 | 306 | 175 | 225 | B4 | A1 | 0 |
| 105D31R | 95 | 169 | 820 | 306 | 175 | 225 | B4 | A1 | 1 |
| 120D31L | 100 | 179 | 860 | 306 | 175 | 225 | B4 | A1 | 0 |
| 120D31R | 100 | 179 | 860 | 306 | 175 | 225 | B4 | A1 | 1 |
E41
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 125E41L | 120 | 223 | 1020 | 410 | 176 | 234 | B8 | A1 | 0 |
G51
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 155G51R | 150 | 290 | 1010 | 513 | 222 | 217 | B8 | A1 | 3 |
| 185G51R | 170 | 336 | 1135 | 513 | 222 | 217 | B8 | A1 | 3 |
| 200G51R | 180 | 360 | 1215 | 513 | 222 | 217 | B8 | A1 | 3 |
| 205G51R | 190 | 383 | 1265 | 513 | 222 | 217 | B8 | A1 | 3 |
H51
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 210H51R | 200 | 407 | 1050 | 512 | 278 | 239 | B8 | A1 | 3 |
| 245H51R | 220 | 456 | 1100 | 512 | 278 | 239 | B8 | A1 | 3 |
| H51225111131 | 225 | 468 | 1110 | 512 | 278 | 239 | B8 | A1 | 3 |
Sealed
B20
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF38B20L(NS40ZL) | 35 | 52 | 305 | 197 | 129 | 227 | N | A2 | 0 |
| SMF38B20R(NS40Z) | 35 | 52 | 305 | 197 | 129 | 227 | N | A2 | 1 |
B24
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF50B24L(NS60LS) | 45 | 70 | 380 | 238 | 129 | 227 | N | A1 | 0 |
| SMF50B24R(NS60S) | 45 | 70 | 380 | 238 | 129 | 227 | N | A1 | 1 |
D23
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF65D23L | 60 | 98 | 520 | 238 | 178 | 225 | B4 | A1 | 0 |
| SMF65D23R | 60 | 98 | 520 | 238 | 178 | 225 | B4 | A1 | 1 |
| SMF75D23L | 66 | 110 | 560 | 238 | 178 | 225 | B4 | A1 | 0 |
| SMF75D23R | 66 | 110 | 560 | 238 | 178 | 225 | B4 | A1 | 1 |
D26
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF80D26L(NX110-5L) | 70 | 118 | 620 | 257 | 176 | 225 | B4 | A1 | 0 |
| SMF80D26R(NX110-5) | 70 | 118 | 620 | 257 | 176 | 225 | B4 | A1 | 1 |
| SMF90D26L | 75 | 128 | 660 | 257 | 176 | 225 | B4 | A1 | 0 |
| SMF90D26R | 75 | 128 | 660 | 257 | 176 | 225 | B4 | A1 | 1 |
D31
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF75D31L(N70L) | 70 | 118 | 620 | 306 | 175 | 225 | B4 | A1 | 0 |
| SMF75D31R(N70) | 70 | 118 | 620 | 306 | 175 | 225 | B4 | A1 | 1 |
| SMF95D31L | 80 | 138 | 660 | 306 | 175 | 225 | B4 | A1 | 0 |
| SMF95D31R | 80 | 138 | 660 | 306 | 175 | 225 | B4 | A1 | 1 |
| SMF105D31L | 90 | 158 | 760 | 306 | 175 | 225 | B4 | A1 | 0 |
| SMF105D31R | 90 | 158 | 760 | 306 | 175 | 225 | B4 | A1 | 1 |
| SMF120D31L | 100 | 179 | 860 | 306 | 175 | 225 | B4 | A1 | 0 |
| SMF120D31R | 100 | 179 | 860 | 306 | 175 | 225 | B4 | A1 | 1 |
G51
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF155G51R | 150 | 290 | 1010 | 510 | 222 | 232 | B8 | A1 | 3 |
| SMF155G51L | 150 | 290 | 1010 | 510 | 222 | 232 | B8 | A1 | 4 |
| SMF185G51R | 170 | 336 | 1135 | 510 | 222 | 232 | B8 | A1 | 3 |
| SMF185G51L | 170 | 336 | 1135 | 510 | 222 | 232 | B8 | A1 | 4 |
| SMF200G51R | 180 | 360 | 1215 | 510 | 222 | 232 | B8 | A1 | 3 |
| SMF200G51L | 180 | 360 | 1215 | 510 | 222 | 232 | B8 | A1 | 4 |
| SMF205G51R | 190 | 383 | 1265 | 510 | 222 | 232 | B8 | A1 | 3 |
| SMF205G51L | 190 | 383 | 1265 | 510 | 222 | 232 | B8 | A1 | 4 |
H51
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF210H51R | 200 | 407 | 1050 | 512 | 278 | 239 | B8 | A1 | 3 |
| SMF210H51L | 200 | 407 | 1050 | 512 | 278 | 239 | B8 | A1 | 4 |
| SMF245H51R(N245L) | 220 | 456 | 1100 | 512 | 278 | 239 | B8 | A1 | 3 |
| SMF245H51L(N245) | 220 | 456 | 1100 | 512 | 278 | 239 | B8 | A1 | 4 |
| SMFH5122511111R | 225 | 468 | 1110 | 512 | 278 | 239 | B8 | A1 | 3 |
| SMFH5122511111L | 225 | 468 | 1110 | 512 | 278 | 239 | B8 | A1 | 4 |
Non-sealed
D23
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| D23060520101 | 60 | 98 | 520 | 238 | 178 | 225 | B4 | A1 | 0 |
| D23060520111 | 60 | 98 | 520 | 238 | 178 | 225 | B4 | A1 | 1 |
| D23066560101 | 66 | 110 | 560 | 238 | 178 | 225 | B4 | A1 | 0 |
| D23066560111 | 66 | 110 | 560 | 238 | 178 | 225 | B4 | A1 | 1 |
N50Z
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 65D26R | 60 | 98 | 520 | 248 | 173 | 216 | B8 | A1 | 1 |
| 75D26L | 66 | 110 | 560 | 284 | 173 | 216 | B8 | A1 | 0 |
| 75D26R | 66 | 110 | 560 | 284 | 173 | 216 | B8 | A1 | 1 |
D31
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| D31070620111 | 70 | 118 | 620 | 306 | 175 | 225 | B4 | A1 | 0 |
| D31070620111 | 70 | 118 | 620 | 306 | 175 | 225 | B4 | A1 | 1 |
| D31080660101 | 80 | 138 | 660 | 306 | 175 | 225 | B4 | A1 | 0 |
| D31080660111 | 80 | 138 | 660 | 306 | 175 | 225 | B4 | A1 | 1 |
| 105D31L | 95 | 169 | 820 | 306 | 175 | 225 | B4 | A1 | 0 |
| 105D31R | 95 | 169 | 820 | 306 | 175 | 225 | B4 | A1 | 1 |
| 120D31L | 100 | 179 | 860 | 306 | 175 | 225 | B4 | A1 | 0 |
| 120D31R | 100 | 179 | 860 | 306 | 175 | 225 | B4 | A1 | 1 |
E41
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 125E41L | 120 | 223 | 1020 | 410 | 176 | 234 | B8 | A1 | 0 |
G51
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 155G51R | 150 | 290 | 1010 | 513 | 222 | 217 | B8 | A1 | 3 |
| 185G51R | 170 | 336 | 1135 | 513 | 222 | 217 | B8 | A1 | 3 |
| 200G51R | 180 | 360 | 1215 | 513 | 222 | 217 | B8 | A1 | 3 |
| 205G51R | 190 | 383 | 1265 | 513 | 222 | 217 | B8 | A1 | 3 |
H51
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 210H51R | 200 | 407 | 1050 | 512 | 278 | 239 | B8 | A1 | 3 |
| 245H51R | 220 | 456 | 1100 | 512 | 278 | 239 | B8 | A1 | 3 |
| H51225111131 | 225 | 468 | 1110 | 512 | 278 | 239 | B8 | A1 | 3 |
B20
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF38B20L(NS40ZL) | 35 | 52 | 305 | 197 | 129 | 227 | N | A2 | 0 |
| SMF38B20R(NS40Z) | 35 | 52 | 305 | 197 | 129 | 227 | N | A2 | 1 |
B24
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF50B24L(NS60LS) | 45 | 70 | 380 | 238 | 129 | 227 | N | A1 | 0 |
| SMF50B24R(NS60S) | 45 | 70 | 380 | 238 | 129 | 227 | N | A1 | 1 |
D23
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF65D23L | 60 | 98 | 520 | 238 | 178 | 225 | B4 | A1 | 0 |
| SMF65D23R | 60 | 98 | 520 | 238 | 178 | 225 | B4 | A1 | 1 |
| SMF75D23L | 66 | 110 | 560 | 238 | 178 | 225 | B4 | A1 | 0 |
| SMF75D23R | 66 | 110 | 560 | 238 | 178 | 225 | B4 | A1 | 1 |
D26
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF80D26L(NX110-5L) | 70 | 118 | 620 | 257 | 176 | 225 | B4 | A1 | 0 |
| SMF80D26R(NX110-5) | 70 | 118 | 620 | 257 | 176 | 225 | B4 | A1 | 1 |
| SMF90D26L | 75 | 128 | 660 | 257 | 176 | 225 | B4 | A1 | 0 |
| SMF80D26R(NX110-5) | 75 | 128 | 660 | 257 | 176 | 225 | B4 | A1 | 1 |
D31
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF75D31L(N70L) | 70 | 118 | 620 | 306 | 175 | 225 | B4 | A1 | 0 |
| SMF75D31R(N70) | 70 | 118 | 620 | 306 | 175 | 225 | B4 | A1 | 1 |
| SMF95D31L | 80 | 138 | 660 | 306 | 175 | 225 | B4 | A1 | 0 |
| SMF95D31R | 80 | 138 | 660 | 306 | 175 | 225 | B4 | A1 | 1 |
| SMF105D31L | 90 | 158 | 760 | 306 | 175 | 225 | B4 | A1 | 0 |
| SMF105D31R | 90 | 158 | 760 | 306 | 175 | 225 | B4 | A1 | 1 |
| SMF120D31L | 100 | 179 | 860 | 306 | 175 | 225 | B4 | A1 | 0 |
| SMF120D31R | 100 | 179 | 860 | 306 | 175 | 225 | B4 | A1 | 1 |
G51
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF155G51R | 150 | 290 | 1010 | 510 | 222 | 232 | B8 | A1 | 3 |
| SMF155G51L | 150 | 290 | 1010 | 510 | 222 | 232 | B8 | A1 | 4 |
| SMF185G51R | 170 | 336 | 1135 | 510 | 222 | 232 | B8 | A1 | 3 |
| SMF185G51L | 170 | 336 | 1135 | 510 | 222 | 232 | B8 | A1 | 4 |
| SMF200G51R | 180 | 360 | 1215 | 510 | 222 | 232 | B8 | A1 | 3 |
| SMF200G51L | 180 | 360 | 1215 | 510 | 222 | 232 | B8 | A1 | 4 |
| SMF205G51R | 190 | 383 | 1265 | 510 | 222 | 232 | B8 | A1 | 3 |
| SMF205G51L | 190 | 383 | 1265 | 510 | 222 | 232 | B8 | A1 | 4 |
H51
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF210H51R | 200 | 407 | 1050 | 512 | 278 | 239 | B8 | A1 | 3 |
| SMF210H51L | 200 | 407 | 1050 | 512 | 278 | 239 | B8 | A1 | 4 |
| SMF245H51R(N245L) | 220 | 456 | 1100 | 512 | 278 | 239 | B8 | A1 | 3 |
| SMF245H51L(N245) | 220 | 456 | 1100 | 512 | 278 | 239 | B8 | A1 | 4 |
| SMFH5122511111R | 225 | 468 | 1110 | 512 | 278 | 239 | B8 | A1 | 3 |
| SMFH5122511111L | 225 | 468 | 1110 | 512 | 278 | 239 | B8 | A1 | 4 |
D23
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| D23060520101 | 60 | 98 | 520 | 238 | 178 | 225 | B4 | A1 | 0 |
| D23060520111 | 60 | 98 | 520 | 238 | 178 | 225 | B4 | A1 | 1 |
| D23066560101 | 66 | 110 | 560 | 238 | 178 | 225 | B4 | A1 | 0 |
| D23066560111 | 66 | 110 | 560 | 238 | 178 | 225 | B4 | A1 | 1 |
N50Z
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 65D26R | 60 | 98 | 520 | 284 | 173 | 216 | B8 | A1 | 1 |
| 75D26L | 66 | 110 | 560 | 284 | 173 | 216 | B8 | A1 | 0 |
| 75D26R | 66 | 110 | 560 | 284 | 173 | 216 | B8 | A1 | 1 |
D31
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| D31070620111 | 70 | 118 | 620 | 306 | 175 | 225 | B4 | A1 | 0 |
| D31070620111 | 70 | 118 | 620 | 306 | 175 | 225 | B4 | A1 | 1 |
| D31080660101 | 80 | 138 | 660 | 306 | 175 | 225 | B4 | A1 | 0 |
| D31080660111 | 80 | 138 | 660 | 306 | 175 | 225 | B4 | A1 | 1 |
| 105D31L | 95 | 169 | 820 | 306 | 175 | 225 | B4 | A1 | 0 |
| 105D31R | 95 | 169 | 820 | 306 | 175 | 225 | B4 | A1 | 1 |
| 120D31L | 100 | 179 | 860 | 306 | 175 | 225 | B4 | A1 | 0 |
| 120D31R | 100 | 179 | 860 | 306 | 175 | 225 | B4 | A1 | 1 |
E41
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 125E41L | 120 | 223 | 1020 | 410 | 176 | 234 | B8 | A1 | 0 |
G51
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 155G51R | 150 | 290 | 1010 | 513 | 222 | 217 | B8 | A1 | 3 |
| 185G51R | 170 | 336 | 1135 | 513 | 222 | 217 | B8 | A1 | 3 |
| 200G51R | 180 | 360 | 1215 | 513 | 222 | 217 | B8 | A1 | 3 |
| 205G51R | 190 | 383 | 1265 | 513 | 222 | 217 | B8 | A1 | 3 |
H51
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 210H51R | 200 | 407 | 1050 | 512 | 278 | 239 | B8 | A1 | 3 |
| 245H51R | 220 | 456 | 1100 | 512 | 278 | 239 | B8 | A1 | 3 |
| H51225111131 | 225 | 468 | 1110 | 512 | 278 | 239 | B8 | A1 | 3 |
L1
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF54507 | 45 | 70 | 415 | 207 | 175 | 190 | B3 | A1 | 0 |
| SMF55090 | 50 | 79 | 470 | 207 | 175 | 190 | B3 | A1 | 0 |
L2
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF55018 | 50 | 79 | 470 | 242 | 175 | 190 | B3 | A1 | 0 |
| SMF55559 | 55 | 88 | 505 | 242 | 175 | 190 | B3 | A1 | 0 |
| SMF56019 | 60 | 98 | 560 | 242 | 175 | 190 | B3 | A1 | 0 |
L3
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF56638 | 66 | 110 | 595 | 278 | 175 | 190 | B3 | A1 | 0 |
| SMF57220 | 72 | 122 | 660 | 278 | 175 | 190 | B3 | A1 | 0 |
L5
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF58439 | 84 | 146 | 775 | 350 | 175 | 188 | B3 | A1 | 0 |
| SMF59018 | 90 | 154 | 830 | 350 | 175 | 188 | B3 | A1 | 0 |
| SMF59485 | 94 | 158 | 860 | 350 | 175 | 188 | B3 | A1 | 0 |
| SMF60044 | 100 | 179 | 920 | 350 | 175 | 188 | B3 | A1 | 0 |
L1
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 54503 | 45 | 70 | 415 | 207 | 175 | 190 | B3 | A1 | 0 |
| 55090 | 50 | 79 | 470 | 207 | 175 | 190 | B3 | A1 | 0 |
L2
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 55014 | 50 | 79 | 470 | 242 | 175 | 190 | B3 | A1 | 0 |
| 55559 | 55 | 88 | 505 | 242 | 175 | 190 | B3 | A1 | 0 |
| 56019 | 60 | 98 | 560 | 242 | 175 | 190 | B3 | A1 | 0 |
L3
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 56638 | 66 | 110 | 595 | 278 | 175 | 190 | B3 | A1 | 0 |
| 57220 | 72 | 122 | 660 | 278 | 175 | 190 | B3 | A1 | 0 |
L5
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 58437 | 84 | 146 | 775 | 350 | 175 | 188 | B3 | A1 | 0 |
| 59039 | 90 | 154 | 830 | 350 | 175 | 188 | B3 | A1 | 0 |
| 59440 | 94 | 158 | 860 | 350 | 175 | 188 | B3 | A1 | 0 |
| 60038 | 100 | 179 | 920 | 350 | 175 | 188 | B3 | A1 | 0 |
B20
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF38B20L(NS40ZL) | 35 | 52 | 305 | 197 | 129 | 227 | N | A2 | 0 |
| SMF38B20R(NS40Z) | 35 | 52 | 305 | 197 | 129 | 227 | N | A2 | 1 |
B24
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF50B24L(NS60LS) | 45 | 70 | 380 | 238 | 129 | 227 | N | A1 | 0 |
| SMF50B24R(NS60S) | 45 | 70 | 380 | 238 | 129 | 227 | N | A1 | 1 |
D23
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF65D23L | 60 | 98 | 520 | 238 | 178 | 225 | B4 | A1 | 0 |
| SMF65D23R | 60 | 98 | 520 | 238 | 178 | 225 | B4 | A1 | 1 |
| SMF75D23L | 66 | 110 | 560 | 238 | 178 | 225 | B4 | A1 | 0 |
| SMF75D23R | 66 | 110 | 560 | 238 | 178 | 225 | B4 | A1 | 1 |
D26
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF80D26L(NX110-5L) | 70 | 118 | 620 | 257 | 176 | 225 | B4 | A1 | 0 |
| SMF80D26R(NX110-5) | 70 | 118 | 620 | 257 | 176 | 225 | B4 | A1 | 1 |
| SMF90D26L | 75 | 128 | 660 | 257 | 176 | 225 | B4 | A1 | 0 |
| SMF90D26R | 75 | 128 | 660 | 257 | 176 | 225 | B4 | A1 | 1 |
D31
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF75D31L(N70L) | 70 | 118 | 620 | 306 | 175 | 225 | B4 | A1 | 0 |
| SMF75D31R(N70) | 70 | 118 | 620 | 306 | 175 | 225 | B4 | A1 | 1 |
| SMF95D31L | 80 | 138 | 660 | 306 | 175 | 225 | B4 | A1 | 0 |
| SMF95D31R | 80 | 138 | 660 | 306 | 175 | 225 | B4 | A1 | 1 |
| SMF105D31L | 90 | 158 | 760 | 306 | 175 | 225 | B4 | A1 | 0 |
| SMF105D31R | 90 | 158 | 760 | 306 | 175 | 225 | B4 | A1 | 1 |
| SMF120D31L | 100 | 179 | 860 | 306 | 175 | 225 | B4 | A1 | 0 |
| SMF120D31R | 100 | 179 | 860 | 306 | 175 | 225 | B4 | A1 | 1 |
G51
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF155G51R | 150 | 290 | 1010 | 510 | 222 | 232 | B8 | A1 | 3 |
| SMF155G51L | 150 | 290 | 1010 | 510 | 222 | 232 | B8 | A1 | 4 |
| SMF185G51R | 170 | 336 | 1135 | 510 | 222 | 232 | B8 | A1 | 3 |
| SMF185G51L | 170 | 336 | 1135 | 510 | 222 | 232 | B8 | A1 | 4 |
| SMF200G51R | 180 | 360 | 1215 | 510 | 222 | 232 | B8 | A1 | 3 |
| SMF200G51L | 180 | 360 | 1215 | 510 | 222 | 232 | B8 | A1 | 4 |
| SMF205G51R | 190 | 383 | 1265 | 510 | 222 | 232 | B8 | A1 | 3 |
| SMF205G51L | 190 | 383 | 1265 | 510 | 222 | 232 | B8 | A1 | 4 |
H51
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF210H51R | 200 | 407 | 1050 | 512 | 278 | 239 | B8 | A1 | 3 |
| SMF210H51L | 200 | 407 | 1050 | 512 | 278 | 239 | B8 | A1 | 4 |
| SMF245H51R(N245L) | 220 | 456 | 1100 | 512 | 278 | 239 | B8 | A1 | 3 |
| SMF245H51L(N245) | 220 | 456 | 1100 | 512 | 278 | 239 | B8 | A1 | 4 |
| SMFH5122511111R | 225 | 468 | 1110 | 512 | 278 | 239 | B8 | A1 | 3 |
| SMFH5122511111L | 225 | 468 | 1110 | 512 | 278 | 239 | B8 | A1 | 4 |
D23
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| D23060520101 | 60 | 98 | 520 | 238 | 178 | 225 | B4 | A1 | 0 |
| D23060520111 | 60 | 98 | 520 | 238 | 178 | 225 | B4 | A1 | 1 |
| D23066560101 | 66 | 110 | 560 | 238 | 178 | 225 | B4 | A1 | 0 |
| D23066560111 | 66 | 110 | 560 | 238 | 178 | 225 | B4 | A1 | 1 |
N50Z
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 65D26R | 60 | 98 | 520 | 248 | 173 | 216 | B8 | A1 | 1 |
| 75D26L | 66 | 110 | 560 | 284 | 173 | 216 | B8 | A1 | 0 |
| 75D26R | 66 | 110 | 560 | 284 | 173 | 216 | B8 | A1 | 1 |
D31
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 120D31L | 100 | 179 | 860 | 306 | 175 | 225 | B4 | A1 | 0 |
| 120D31R | 100 | 179 | 860 | 306 | 175 | 225 | B4 | A1 | 1 |
E41
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 125E41L | 120 | 223 | 1020 | 410 | 176 | 234 | B8 | A1 | 0 |
G51
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 155G51R | 150 | 290 | 1010 | 513 | 222 | 217 | B8 | A1 | 3 |
| 185G51R | 170 | 336 | 1135 | 513 | 222 | 217 | B8 | A1 | 3 |
| 200G51R | 180 | 360 | 1215 | 513 | 222 | 217 | B8 | A1 | 3 |
| 205G51R | 190 | 383 | 1265 | 513 | 222 | 217 | B8 | A1 | 3 |
H51
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 210H51R | 200 | 407 | 1050 | 512 | 278 | 239 | B8 | A1 | 3 |
| 245H51R | 220 | 456 | 1100 | 512 | 278 | 239 | B8 | A1 | 3 |
| H51225111131 | 225 | 468 | 1110 | 512 | 278 | 239 | B8 | A1 | 3 |
L1
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF55090 | 50 | 79 | 470 | 207 | 175 | 190 | B3 | A1 | 0 |
L2
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF55018 | 50 | 79 | 470 | 242 | 175 | 190 | B3 | A1 | 0 |
| SMF55559 | 55 | 88 | 505 | 242 | 175 | 190 | B3 | A1 | 0 |
| SMF56019 | 60 | 98 | 560 | 242 | 175 | 190 | B3 | A1 | 0 |
L3
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF56638 | 66 | 110 | 595 | 278 | 175 | 190 | B3 | A1 | 0 |
| SMF57220 | 72 | 122 | 660 | 278 | 175 | 190 | B3 | A1 | 0 |
L5
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF59018 | 90 | 154 | 830 | 350 | 175 | 188 | B3 | A1 | 0 |
| SMF60044 | 100 | 179 | 920 | 350 | 175 | 188 | B3 | A1 | 0 |
L1
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 55090 | 50 | 79 | 470 | 207 | 175 | 190 | B3 | A1 | 0 |
L2
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 55014 | 50 | 79 | 470 | 242 | 175 | 190 | B3 | A1 | 0 |
| 55559 | 55 | 88 | 55 | 242 | 175 | 190 | B3 | A1 | 0 |
| 56019 | 60 | 98 | 560 | 242 | 175 | 190 | B3 | A1 | 0 |
L3
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 56638 | 66 | 110 | 595 | 278 | 175 | 190 | B3 | A1 | 0 |
| 57220 | 72 | 122 | 660 | 278 | 175 | 190 | B3 | A1 | 0 |
L5
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 59039 | 90 | 154 | 830 | 350 | 175 | 188 | B3 | A1 | 0 |
