VIVAT CLASSIC BATTERY
Universal Innovation!
VIVAT Classic batteries are an economical solution for cars. These types of batteries are flooded battery types, featuring SLI technology (starting, lighting, and ignition), which are suitable for use in all classes of vehicles. They provide power for starting the vehicle and supply necessary energy when the engine is off.
Some features of VIVAT Classic batteries are as follows:
- Lead- Calcium alloy grid technology
- High starting power under all weather conditions
- Maintenance-free design throughout its service life
- Suitable for every car brand and model with international norms and dimensions
Previous
Next
Types of batteries with details
Sealed
B20
| Part Number | Capacity 20 (AH) | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF38B20L(NS40ZL) | 35 | 52 | 305 | 197 | 129 | 227 | N | A2 | 0 |
| SMF38B20R(NS40Z) | 35 | 52 | 305 | 197 | 129 | 227 | N | A2 | 1 |
B24
| Part Number | Capacity 20 (AH) | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF50B24L(NS60LS) | 45 | 70 | 380 | 238 | 129 | 227 | N | A1 | 0 |
| SMF50B24R(NS60S) | 45 | 70 | 380 | 238 | 129 | 227 | N | A1 | 1 |

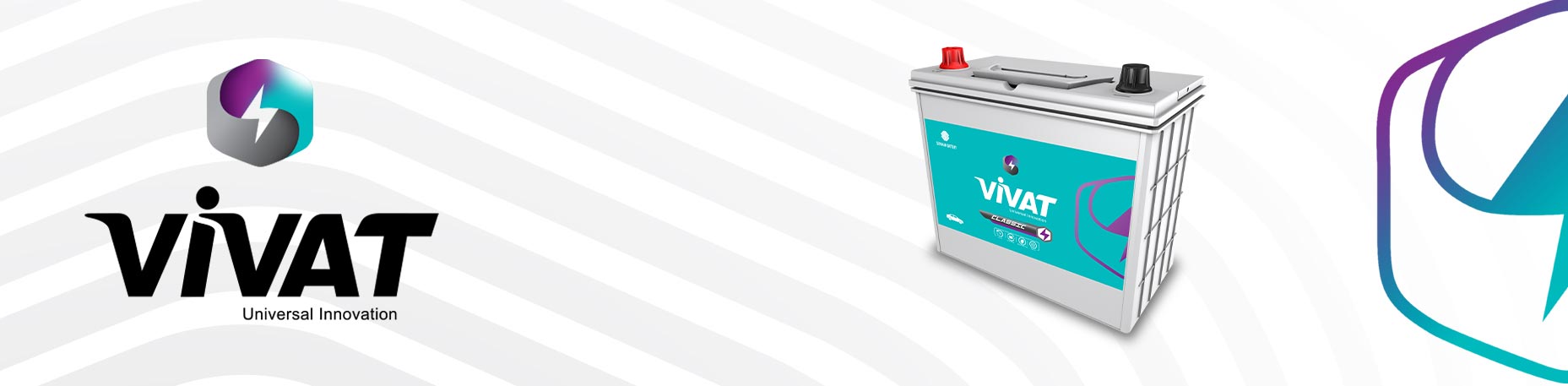

D23
| Part Number | Capacity 20 (AH) | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF65D23L | 60 | 98 | 520 | 238 | 178 | 225 | B4 | A1 | 0 |
| SMF65D23R | 60 | 98 | 520 | 238 | 178 | 225 | B4 | A1 | 1 |
| SMF75D23L | 66 | 110 | 560 | 238 | 178 | 225 | B4 | A1 | 0 |
| SMF75D23R | 66 | 110 | 560 | 238 | 178 | 225 | B4 | A1 | 1 |
D26
| Part Number | Capacity 20 (AH) | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF80D26L(NX110-5L) | 70 | 118 | 620 | 257 | 176 | 225 | B4 | A1 | 0 |
| SMF80D26R(NX110-5) | 70 | 118 | 620 | 257 | 176 | 225 | B4 | A1 | 1 |
| SMF90D26L | 75 | 128 | 660 | 257 | 176 | 225 | B4 | A1 | 0 |
| SMF90D26R | 75 | 128 | 660 | 257 | 176 | 225 | B4 | A1 | 1 |

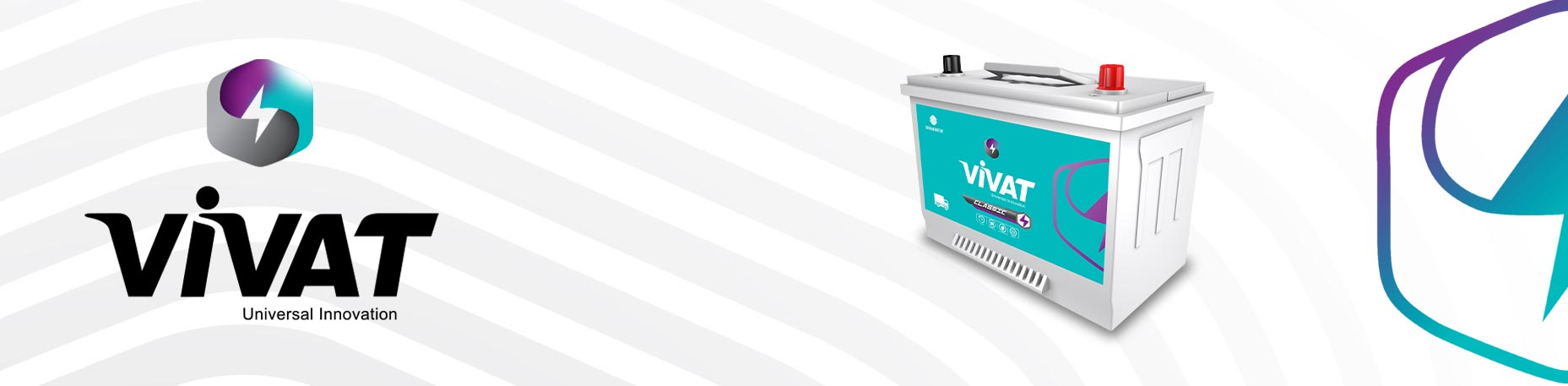

D31
| Part Number | Capacity 20 (AH) | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF75D31L(N70L) | 70 | 118 | 620 | 306 | 175 | 225 | B4 | A1 | 0 |
| SMF75D31R(N70) | 70 | 118 | 620 | 306 | 175 | 225 | B4 | A1 | 1 |
| SMF95D31L | 80 | 138 | 660 | 306 | 175 | 225 | B4 | A1 | 0 |
| SMF95D31R | 80 | 138 | 660 | 306 | 175 | 225 | B4 | A1 | 1 |
| SMF105D31L | 90 | 158 | 760 | 306 | 175 | 225 | B4 | A1 | 0 |
| SMF105D31R | 90 | 158 | 760 | 306 | 175 | 225 | B4 | A1 | 1 |
| SMF120D31L | 100 | 179 | 860 | 306 | 175 | 225 | B4 | A1 | 0 |
| SMF120D31R | 100 | 179 | 860 | 306 | 175 | 225 | B4 | A1 | 1 |
G51
| Part Number | Capacity 20 (AH) | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF155G51R | 150 | 290 | 1010 | 510 | 222 | 232 | B8 | A1 | 3 |
| SMF155G51L | 150 | 290 | 1010 | 510 | 222 | 232 | B8 | A1 | 4 |
| SMF185G51R | 170 | 336 | 1135 | 510 | 222 | 232 | B8 | A1 | 3 |
| SMF185G51L | 170 | 336 | 1135 | 510 | 222 | 232 | B8 | A1 | 4 |
| SMF200G51R | 180 | 360 | 1215 | 510 | 222 | 232 | B8 | A1 | 3 |
| SMF200G51L | 180 | 360 | 1215 | 510 | 222 | 232 | B8 | A1 | 4 |
| SMF205G51R | 190 | 383 | 1265 | 510 | 222 | 232 | B8 | A1 | 3 |
| SMF205G51L | 190 | 383 | 1265 | 510 | 222 | 232 | B8 | A1 | 4 |
H51
| Part Number | Capacity 20 (AH) | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF210H51R | 200 | 407 | 1050 | 512 | 278 | 239 | B8 | A1 | 3 |
| SMF210H51L | 200 | 407 | 1050 | 512 | 278 | 239 | B8 | A1 | 4 |
| SMF245H51R(N245L) | 220 | 456 | 1100 | 512 | 278 | 239 | B8 | A1 | 3 |
| SMF245H51L(N245) | 220 | 456 | 1100 | 512 | 278 | 239 | B8 | A1 | 4 |
| SMFH5122511111R | 225 | 468 | 1110 | 512 | 278 | 239 | B8 | A1 | 3 |
| SMFH5122511111L | 225 | 468 | 1110 | 512 | 278 | 239 | B8 | A1 | 4 |
Non-sealed
D23
| Part Number | Capacity 20 (AH) | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| D23060520101 | 60 | 98 | 520 | 238 | 178 | 225 | B4 | A1 | 0 |
| D23060520111 | 60 | 98 | 520 | 238 | 178 | 225 | B4 | A1 | 1 |
| D23066560101 | 66 | 110 | 560 | 238 | 178 | 225 | B4 | A1 | 0 |
| D23066560111 | 66 | 110 | 560 | 238 | 178 | 225 | B4 | A1 | 1 |
D31
| Part Number | Capacity 20 (AH) | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 120D31L | 100 | 179 | 860 | 306 | 175 | 225 | B4 | A1 | 0 |
| 120D31R | 100 | 179 | 860 | 306 | 175 | 225 | B4 | A1 | 1 |
E41
| Part Number | Capacity 20 (AH) | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 125E41L | 120 | 223 | 1020 | 409 | 175 | 223 | B8 | A1 | 0 |
G51
| Part Number | Capacity 20 (AH) | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 155G51R | 150 | 290 | 1010 | 513 | 222 | 217 | B8 | A1 | 3 |
| 185G51R | 170 | 336 | 1135 | 513 | 222 | 217 | B8 | A1 | 3 |
| 200G51R | 180 | 360 | 1215 | 513 | 222 | 217 | B8 | A1 | 3 |
| 205G51R | 190 | 383 | 1265 | 513 | 222 | 217 | B8 | A1 | 3 |
H51
| Part Number | Capacity 20 (AH) | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 210H51R | 200 | 407 | 1050 | 512 | 278 | 239 | B8 | A1 | 3 |
| 245H51R | 220 | 456 | 1100 | 512 | 278 | 239 | B8 | A1 | 3 |
| H51225111131 | 225 | 468 | 1110 | 512 | 278 | 239 | B8 | A1 | 3 |
B20
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF38B20L(NS40ZL) | 35 | 52 | 305 | 197 | 129 | 227 | N | A2 | 0 |
| SMF38B20R(NS40Z) | 35 | 52 | 305 | 197 | 129 | 227 | N | A2 | 1 |
B24
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF50B24L(NS60LS) | 45 | 70 | 380 | 238 | 129 | 227 | N | A1 | 0 |
| SMF50B24R(NS60S) | 45 | 70 | 380 | 238 | 129 | 227 | N | A1 | 1 |
D23
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF65D23L | 60 | 98 | 520 | 238 | 178 | 225 | B4 | A1 | 0 |
| SMF65D23R | 60 | 98 | 520 | 238 | 178 | 225 | B4 | A1 | 1 |
| SMF75D23L | 66 | 110 | 560 | 238 | 178 | 225 | B4 | A1 | 0 |
| SMF75D23R | 66 | 110 | 560 | 238 | 178 | 225 | B4 | A1 | 1 |
D26
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF80D26L(NX110-5L) | 70 | 118 | 620 | 257 | 176 | 225 | B4 | A1 | 0 |
| SMF80D26R(NX110-5) | 70 | 118 | 620 | 257 | 176 | 225 | B4 | A1 | 1 |
| SMF90D26L | 75 | 128 | 660 | 257 | 176 | 225 | B4 | A1 | 0 |
| SMF90D26R | 75 | 128 | 660 | 257 | 176 | 225 | B4 | A1 | 1 |
D31
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF75D31L(N70L) | 70 | 118 | 620 | 306 | 175 | 225 | B4 | A1 | 0 |
| SMF75D31R(N70) | 70 | 118 | 620 | 306 | 175 | 225 | B4 | A1 | 1 |
| SMF95D31L | 80 | 138 | 660 | 306 | 175 | 225 | B4 | A1 | 0 |
| SMF95D31R | 80 | 138 | 660 | 306 | 175 | 225 | B4 | A1 | 1 |
| SMF105D31L | 90 | 158 | 760 | 306 | 175 | 225 | B4 | A1 | 0 |
| SMF105D31R | 90 | 158 | 760 | 306 | 175 | 225 | B4 | A1 | 1 |
| SMF120D31L | 100 | 179 | 860 | 306 | 175 | 225 | B4 | A1 | 0 |
| SMF120D31R | 100 | 179 | 860 | 306 | 175 | 225 | B4 | A1 | 1 |
G51
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF155G51R | 150 | 290 | 1010 | 510 | 222 | 232 | B8 | A1 | 3 |
| SMF155G51L | 150 | 290 | 1010 | 510 | 222 | 232 | B8 | A1 | 4 |
| SMF185G51R | 170 | 336 | 1135 | 510 | 222 | 232 | B8 | A1 | 3 |
| SMF185G51L | 170 | 336 | 1135 | 510 | 222 | 232 | B8 | A1 | 4 |
| SMF200G51R | 180 | 360 | 1215 | 510 | 222 | 232 | B8 | A1 | 3 |
| SMF200G51L | 180 | 360 | 1215 | 510 | 222 | 232 | B8 | A1 | 4 |
| SMF205G51R | 190 | 383 | 1265 | 510 | 222 | 232 | B8 | A1 | 3 |
| SMF205G51L | 190 | 383 | 1265 | 510 | 222 | 232 | B8 | A1 | 4 |
H51
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF210H51R | 200 | 407 | 1050 | 512 | 278 | 239 | B8 | A1 | 3 |
| SMF210H51L | 200 | 407 | 1050 | 512 | 278 | 239 | B8 | A1 | 4 |
| SMF245H51R(N245L) | 220 | 456 | 1100 | 512 | 278 | 239 | B8 | A1 | 3 |
| SMF245H51L(N245) | 220 | 456 | 1100 | 512 | 278 | 239 | B8 | A1 | 4 |
| SMFH5122511111R | 225 | 468 | 1110 | 512 | 278 | 239 | B8 | A1 | 3 |
| SMFH5122511111L | 225 | 468 | 1110 | 512 | 278 | 239 | B8 | A1 | 4 |
D23
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| D23060520101 | 60 | 98 | 520 | 238 | 178 | 225 | B4 | A1 | 0 |
| D23060520111 | 60 | 98 | 520 | 238 | 178 | 225 | B4 | A1 | 1 |
| D23066560101 | 66 | 110 | 560 | 238 | 178 | 225 | B4 | A1 | 0 |
| D23066560111 | 66 | 110 | 560 | 238 | 178 | 225 | B4 | A1 | 1 |

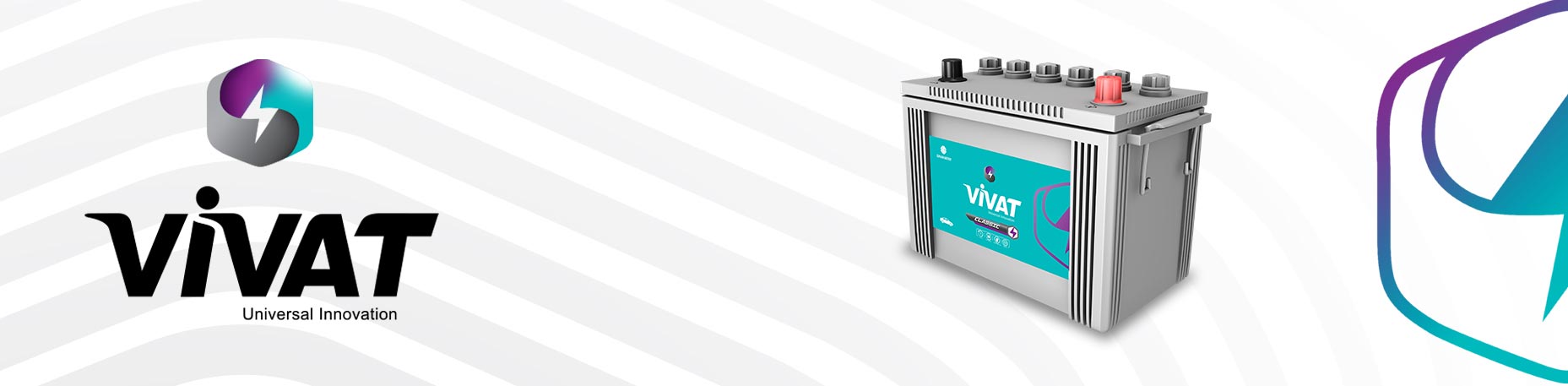

N50Z
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 65D26R | 60 | 98 | 520 | 248 | 173 | 216 | B8 | A1 | 1 |
| 75D26L | 66 | 110 | 560 | 284 | 173 | 216 | B8 | A1 | 0 |
| 75D26R | 66 | 110 | 560 | 284 | 173 | 216 | B8 | A1 | 1 |
D31
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 120D31L | 100 | 179 | 860 | 306 | 175 | 225 | B4 | A1 | 0 |
| 120D31R | 100 | 179 | 860 | 306 | 175 | 225 | B4 | A1 | 1 |
E41
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 125E41L | 120 | 223 | 1020 | 410 | 176 | 234 | B8 | A1 | 0 |
G51
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 155G51R | 150 | 290 | 1010 | 513 | 222 | 217 | B8 | A1 | 3 |
| 185G51R | 170 | 336 | 1135 | 513 | 222 | 217 | B8 | A1 | 3 |
| 200G51R | 180 | 360 | 1215 | 513 | 222 | 217 | B8 | A1 | 3 |
| 205G51R | 190 | 383 | 1265 | 513 | 222 | 217 | B8 | A1 | 3 |
H51
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 210H51R | 200 | 407 | 1050 | 512 | 278 | 239 | B8 | A1 | 3 |
| 245H51R | 220 | 456 | 1100 | 512 | 278 | 239 | B8 | A1 | 3 |
| H51225111131 | 225 | 468 | 1110 | 512 | 278 | 239 | B8 | A1 | 3 |
Sealed
L1
| Part Number | Capacity 20 (AH) | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF55090 | 50 | 79 | 470 | 207 | 175 | 190 | B3 | A1 | 0 |
L2
| Part Number | Capacity 20 (AH) | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF55018 | 50 | 79 | 470 | 242 | 175 | 190 | B3 | A1 | 0 |
| SMF55559 | 55 | 88 | 505 | 242 | 175 | 190 | B3 | A1 | 0 |
| SMF56019 | 60 | 98 | 560 | 242 | 175 | 190 | B3 | A1 | 0 |
L3
| Part Number | Capacity 20 (AH) | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF56638 | 66 | 110 | 595 | 278 | 175 | 190 | B3 | A1 | 0 |
| SMF57220 | 72 | 122 | 660 | 278 | 175 | 190 | B3 | A1 | 0 |
L5
| Part Number | Capacity 20 (AH) | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF59018 | 90 | 158 | 830 | 350 | 175 | 188 | B3 | A1 | 0 |
| SMF60044 | 100 | 179 | 920 | 350 | 175 | 188 | B3 | A1 | 0 |
Non-sealed
L1
| Part Number | Capacity 20 (AH) | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 55090 | 50 | 79 | 470 | 207 | 175 | 190 | B3 | A1 | 0 |
L2
| Part Number | Capacity 20 (AH) | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 55014 | 50 | 79 | 470 | 242 | 175 | 190 | B3 | A1 | 0 |
| 55559 | 55 | 88 | 55 | 242 | 175 | 190 | B3 | A1 | 0 |
| 56019 | 60 | 98 | 560 | 242 | 175 | 190 | B3 | A1 | 0 |
L3
| Part Number | Capacity 20 (AH) | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 56638 | 66 | 110 | 595 | 278 | 175 | 190 | B3 | A1 | 0 |
| 57220 | 72 | 122 | 660 | 278 | 175 | 190 | B3 | A1 | 0 |
L5
| Part Number | Capacity 20 (AH) | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 59039 | 90 | 158 | 830 | 350 | 175 | 188 | B3 | A1 | 0 |
L1
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF55090 | 50 | 79 | 470 | 207 | 175 | 190 | B3 | A1 | 0 |
L2
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF55018 | 50 | 79 | 470 | 242 | 175 | 190 | B3 | A1 | 0 |
| SMF55559 | 55 | 88 | 505 | 242 | 175 | 190 | B3 | A1 | 0 |
| SMF56019 | 60 | 98 | 560 | 242 | 175 | 190 | B3 | A1 | 0 |
L3
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF56638 | 66 | 110 | 595 | 278 | 175 | 190 | B3 | A1 | 0 |
| SMF57220 | 72 | 122 | 660 | 278 | 175 | 190 | B3 | A1 | 0 |
L5
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| SMF59018 | 90 | 154 | 830 | 350 | 175 | 188 | B3 | A1 | 0 |
| SMF60044 | 100 | 179 | 920 | 350 | 175 | 188 | B3 | A1 | 0 |
L1
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 55090 | 50 | 79 | 470 | 207 | 175 | 190 | B3 | A1 | 0 |
L2
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 55014 | 50 | 79 | 470 | 242 | 175 | 190 | B3 | A1 | 0 |
| 55559 | 55 | 88 | 55 | 242 | 175 | 190 | B3 | A1 | 0 |
| 56019 | 60 | 98 | 560 | 242 | 175 | 190 | B3 | A1 | 0 |
L3
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 56638 | 66 | 110 | 595 | 278 | 175 | 190 | B3 | A1 | 0 |
| 57220 | 72 | 122 | 660 | 278 | 175 | 190 | B3 | A1 | 0 |
L5
| Part Number | Capacity 20 (AH) up to | Reserve Capacity (min) | CCA(EN)(A) | Max.Overall Dimension (mm) | Base Hold Down | Terminal Type | Terminal Layout | ||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | T.Height | |||||||
| 59039 | 90 | 154 | 830 | 350 | 175 | 188 | B3 | A1 | 0 |
- SMF: Sealed Maintenance Free
Download Vivat Classic Battery Catalogue
Click on each brand to see the technical features
Automotive batteries
Industrial batteries
